Technical Specifications of the 5040GJY3 Water Tank Truck
| Dongfeng Tianjin water tank truckTechnical Parameters |
| Product: | Dongfeng Tianjin water tank truck | Overall dimension: | 7880×2430×2760(mm) |
| Chassis model: | DFL1140B2 | Compartment dimension: | ××(mm) |
| Gross weight: | 14490(kg) | Approach angle/Departure angle: | 17/15(°) |
| Rated payload: | 8200(kg) | Front/rear suspension: | 1430/1950(mm) |
| Kerb weight: | 6095(kg) | Max speed: | 90(km/h) |
| Engine: | ISDe180 30 ISDe185 30 ISDe210 30 |
| Displacement: | 4500 6700 6700(ml) | Power: | 132 136 155(kw) |
| Manufacturer: | Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd. |
| Emission standard: | GB3847-2005,GB17691-2005 Euro 3 |
| Axle nos: | 2 | Front tread: | 1880(mm) |
| Wheelbase: | 4500,4200(mm) | Rear tread: | 1800,1860(mm) |
| Tyre nos: | 6 | Tyre specification: | 9.00-20,9.00R20,10.00-20,10.00R20 |
| Fuel type: | Diesel | Leaf spring nos: | 7/9+6,8/10+8 |
| Axle load: | 5400/9090 | Passenger nos | 3 |
| Remarks: | Tank volume:8.6 m3, tank dimension(length×longer axis×shorter axis)(mm):4600×2200×1250 |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you |

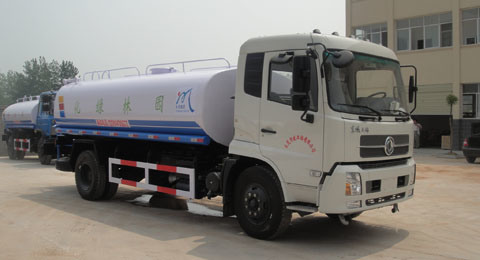

Product Image
