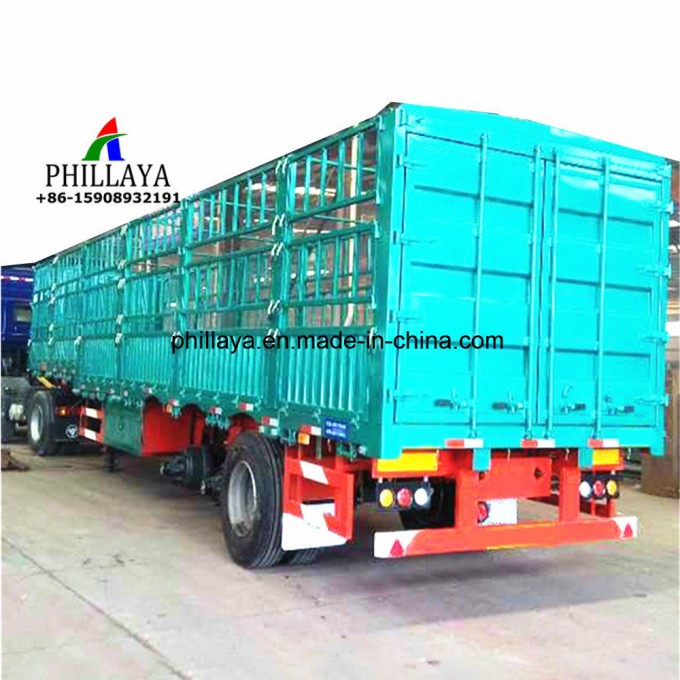

Stake High Wall Fence Truck Hauling Livestock Cargo Semi Trailer

CONTACT:Branda Hu --- Exporting Manager Of Phil-la-ya Vehicle.
Mobile:+8615908932191

Office Tel:+86 532 83957810
Web:www.Phillaya.com
**********************************************************************************************************************************
WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT. WISH THE LONG-NEW MUTUAL BENEFIT &
BUSINESS RELATIonSHIP CAN BE BUILT BY OUR JOINT EFFORTS

2-4 Axles /30-100T STAKE SEMI TRAILER(Dimensions Optional)
Model	Axles/ Tires
PLY9100GYY	2 axles/8 tires		3 axles/12 tires	4 axles/16 tires
Rated Capacity	30T		60T	100T
Place of Origin		Shangdong province, China
Color		Any color will be available
Rated Load		30000 kg-65000kg
Tare Weight		5000 kg-7000kg
Axle Brand		13Tonnage
No. Of the Axles		2
Pieces of leaf-spring		10
Suspension		Heavy Duty Leaf Spring
Material of the Main Beam		Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm ,through cross beams Q235, Side Beam: 160 mm Upper flange :16mm, Mid web :10 mm, Lower flange: 18mm
Sidewall Height		1800 mm /3mm thickness
Brake System		Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber		Four double and two single chamber
Electrical System		24V, 7core socket, lights according to European standards.
Floor		3mm management plate
Tool Box		1 box of standard tools
Spare tire carrier		2 sets
Color and Logo		Depends on the buyer's requirement.
Others: Other Size/dimension or configurations will be available by customeri-zation.
