1. This series car semi trailers are mainly used in the car/ suv transportation.
2. The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 25000mm, we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The side wall height and side wall can be skeleton or enclosed type.
6. The floor can be double plates or single plates with hydraulic lifting system.

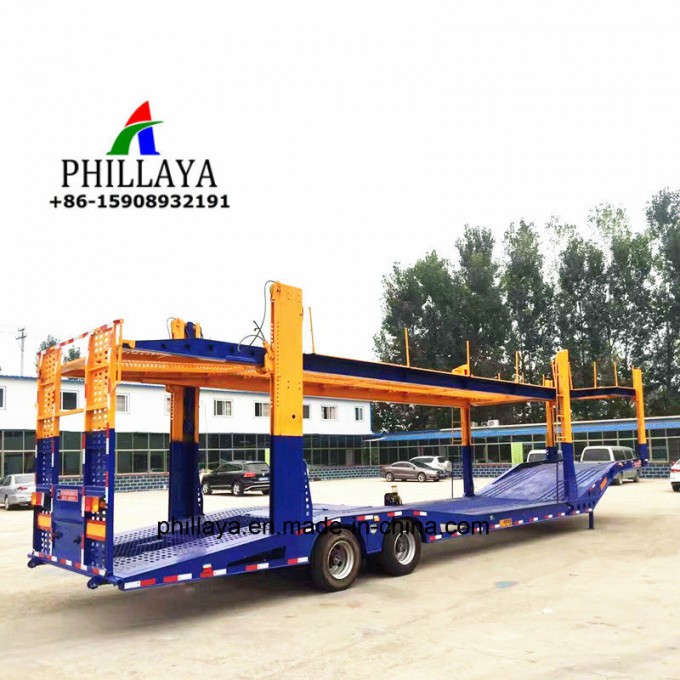

10 Car/SUV Transportation Semi Trailer (Other Dimensions Optional)
Model	FLY9321TDP
Tire No.	4
Axle No.	2
Tire specification	11R22.5
Rear tread(mm)	1840/1840
Outside Dimension L×W×H	17000x2400x3000 mm
Mainframe	Q345B manganese plates, automatic submerged arc welded
Floor	Steel Sheet 3mm thickness or diamond plate
Suspension	Steel leaf spring suspension system
Rated load	30-50 T
Wheel Rim	8
Pin Size	2' and 3.5' inter-changeable Pin
Spare Wheel Carrier	One set of spare wheel carrier including ariser.
Braking System	2-Line compssed air brake system on all wheels with additional parking brake.
Brake Air Chamber	Automatic Air Chambers
ElectricalSystem	1.Voltage: 24v2.Receptacle: 7ways(7 wire harness)
Accessory	One tooling box with aset of standard trailer tool
Landing gear	Capacity of 28ton,factory brand
Lights System	LED electrical system to international standards includes taillights, sidelights and direction indicators.
Loading Capacity	Two floors,5cars each floor; 10cars in total.
