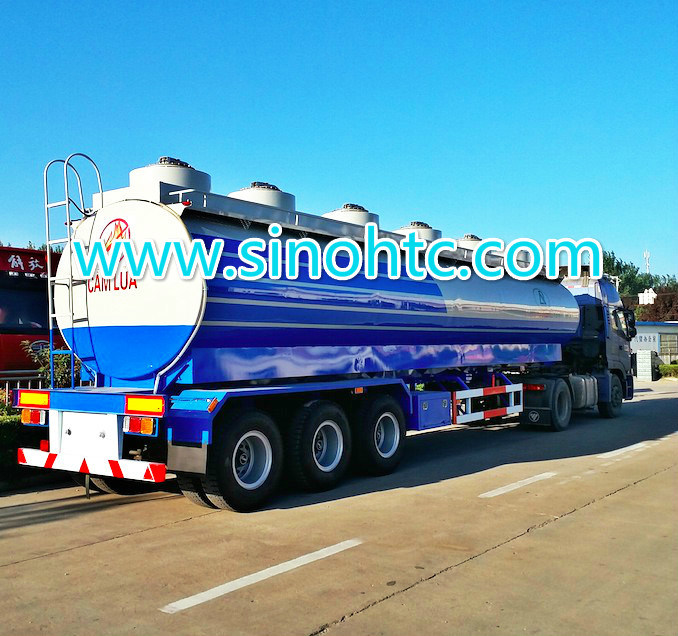

Tri-Axle Chemical Liquid Tanker Semi Truck Trailer (HTC9400GHY)
35000-50000L Oil Fuel Tank Semi Trailer
Oil Fuel Tank Semi Trailer (35000-50000L)
Tank Volume are 35000 L-50000L
Overall Length: 11600-12500mm
Overall Width: 2500mm
Overall height: 3650mm
Fuel tanker semi trailer
Tank Water Volume are of 35000L-50000 L,
DIMENSION:
Overall Length: 11, 500mm; 12, 600mm
Overall Width: 2, 500mm
Overall height: 3, 800mm
Wheel span: 6, 400+1, 310
Axle Spacing: 1, 310 mm
Axle: BPW / FUWA axle, X 3PCS
Brake: WABCO Dual line pneumatic brake system.
Wheel: 10 holes 8.0-20 steel Disc wheel, 12 PCS, brand. Chineses famous.
Tire: 11.00R20/1200R20/1100R22.5 steel radius tyre 12PCS, brand. Chineses famous.
King Pin: 3.5" king pin, made in China.
LANDING LEG: . JOST D200T
steeloil tank trailer |
| Overall size | 12400*2500*3700 |
| Wheelspan | 5180+1310+1310 |
| Axle spacing | 1310 |
| Distance between two wheel | 1850 |
| Tank size | 12000*2400*1800 |
| Material of tank | Carbon steel |
| Shape of tank | Square round |
| Tare weight: | 12000kg |
| Pay load | 45000kg |
| G. V. W | 57000KG |
| Effective cubage | 35.1m3 |
| Plate of spring | 8/8/8; 10/10/10 |
| Tire size | 11.00R20 /12.00R20 |
| Trade iterm | EXW, FOB, CFR, CIF |
| We can designer as per your detailed requirements. We have rich experience in this fields. |
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light: Front marker lamp: White
Side marker lamp: White and red
Rear lamp: Red
Turn signal lamp: Amber
Q: What's the brand of your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How a
bout warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
steeloil tank trailer |
| Overall size | 12400*2500*3700 |
| Wheelspan | 5180+1310+1310 |
| Axle spacing | 1310 |
| Distance between two wheel | 1850 |
| Tank size | 12000*2400*1800 |
| Material of tank | Carbon steel |
| Shape of tank | Square round |
| Tare weight: | 12000kg |
| Pay load | 45000kg |
| G. V. W | 57000KG |
| Effective cubage | 35.1m3 |
| Plate of spring | 8/8/8; 10/10/10 |
| Tire size | 11.00R20 /12.00R20 |
| Trade iterm | EXW, FOB, CFR, CIF |
We can designer as per your detailed requirements. We have rich experience in this fields.
|
