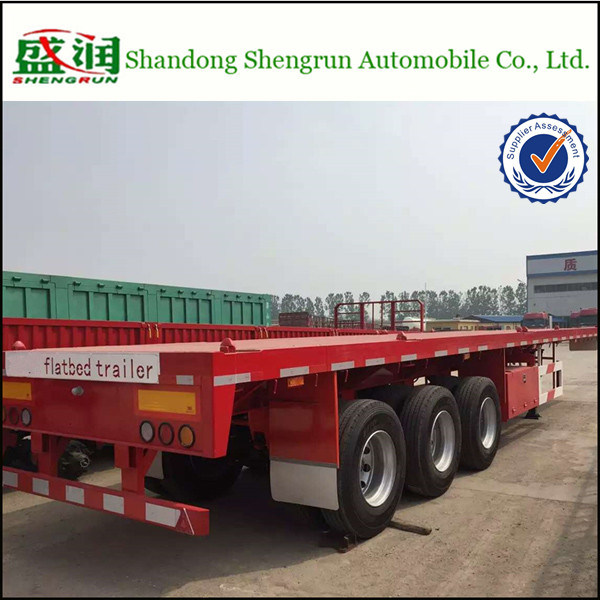

40FT Flatbed Container Cargo Semi Truck Trailer

FUNCTIONS
1. This series container semi trailers are mainly used in the port for containers or bulk cargos' transportation.
2. The rated capacity varies widely from 30Tons to 65Tons, and the dimension different from 6100mm to 15820mm, we can manufacture it according to your needs.
3. The axles can be Fuwa / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be skeleton or flatbed.

specifications ofcontainer semi-trailer:

Model	YNT9403TJZ /YNT352TJZG/ YNT 9351TJZG/ YNT 9401TJZ/ YNT 9402TJZG
	/ YNT 9404TJZG/ YNT 9405TJZG/ YNT 9406TJZG/ YNT 9401P
Product type	12000/12500/13000x2500x1500,2600(mm)
Wheelbase(mm)	6860+1310+1310
Dimension	12000,12500,13000×2500×1500,2600(mm)
Tare weight	about5.9T
Loading capacity	45T
Axlebrandandnumber	11.5T,13TFuwa3unit
ABS system	Optional
SteelSpring	10/10/10leafspringsuspension / Optional8/8/8
Twist locks	Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional
Suspension	Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand)
Spring leaf	90(W)mm *13(Thickness)mm*10Layer, optional
Tyreandquantity	12R22.512sets / Optional 11R20 12PR,11R22.5 12PR
Rim	9.00-22.5 China brand 12pieces
King pin	50#or90#
The material of main beam	Theheightofthebeamis500mm, upperplateis14mm,downplateis16mm, upperplateis14mm,downplateis16mm, middleplateis8mm.
Bottom platform	3mm diamond steel plate
Side beam	16mm channel stee (Material is Q235steel)
Brakeairchamber	Fourdoubleandtwosinglechamber
Landinggear	28T, double speed operation
Platformplate	3mm Checkered steel plate
Brakesystem	DualLinebrakingsystem,noneABS.
Valve	imported valve (especial for exporting market )
Electricalsystem	24V,7pinsocket,Oneset6-corestandardCable
Electrical System	24V,7 wire harness
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping terms	By bulk cargo carrier,RORO or 40HQ container
Packing	Polishwithwaxbeforeshipping

Product Description
Tri-Axle 20ft&40ft Flatbed Container Carrying Semi Truck Trailer

1) Manufacturer, more than 20yrs professional experience.
2) CCC, SGS and ISO9001 certificate
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.

FAQ:
1. Can ihave samples of this flatbed container trailerto test the quality?
Yes, you can buy any semi trailer to test the quality, MOQ is 1set.
2. What's the delivery time and can you lower the price?
It depends on the trailer type. The delivery time is within 15 workdays after we received your ppayment. If you make an order of large quantity, then ,we can give discount.
3. Can icustomize the painting and the trailer design?
Yes, we offer customized design and logo for reasonable type.
4. What's the payment method of the trailer?
a.TT 30% as Deposit, Balance Before shipment by TT
b. L/C at sight
5.How do you ensurethe semi trailer quality?
We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.
