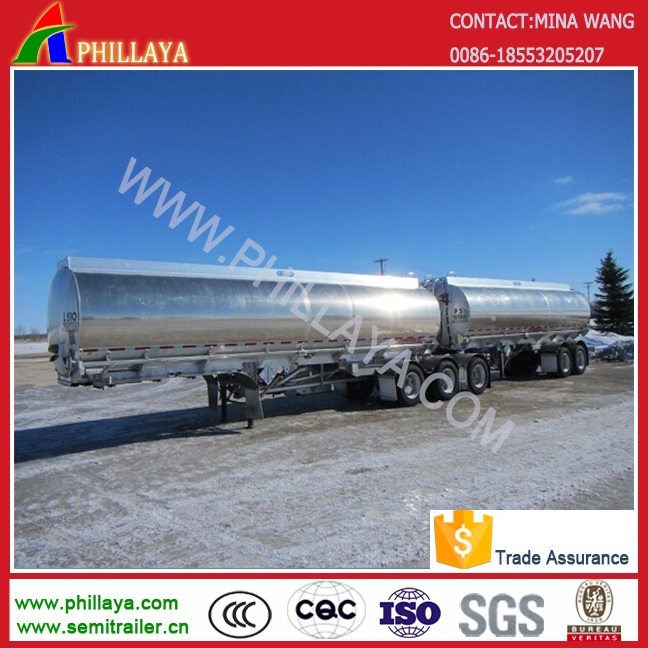

Interlink Super Link Fuel Double Tanks Trailer for Truck Tanker

2018 NEW PRMOTION! BIG SALE FOR YOU


PHILLAYA SPECIAL VEHICLE
*15 years factory direct sale
* 5years exporting experience
* 1year quality qurantee


Functions of the tanker semi trailer:
This series double super link fuel water milk tank semi trailer, is tank-style designed, is suitable for the transportation of food liquid or fuel oil and so on products.

Optional parts for the tanker semi trailer:
Axle quantity: 2 axle 3axle 4axle
Axle brand: FUWA /BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
Material: Carbon steel/aluminum/stainless steel material
Medidum: Milk.Water, chemical liquid, fuel, oil and soninterlink Super link Fuel Double Tanks Trailer for Truck Tanker
As an experienced semi trailer manufacturer, we can according to the actual needs, design and manufacture tank semi trailer specifically for you.




Here provide the specifications of interlink Super link Fuel Double Tanks Trailer for Truck Tanker

super link fuel double tanks trailer for truck tanker
Tare Weight	about 10T	Rated Load	about 40T
Outside Dimensions (m)	-	Wheel base	1310(mm)
Tyre Specifications	11.00R20	Tyres	ISO Certificated
Axle-load	13T	No. Of the Axles	4pcs
Landing Gear	-	Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
Compartment No & Valve	One whole compartment with loading and unloading valves, loading and unloading pump
Compartments	3compartments
Manhole Cover	Carbon steel 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4" rubber hose,2 pcs,6m/each
Cat Walk	With (Common model or special design)
Departure Angle	14.6
Brake System	dual-pipes braking system,Automatic air brakes.
Brake Air Chamber	Four double and two single chamber
Material of the tank body	stainless steel, automatic submerged arc welded
Material of the Beam	Main beam:Q345 manganese plates, automatic submerged arc welded.Through Cross Beams:Q235
Color and Logo	Depend on the customer's requirement
Accessory	One standard tooling boxes ,Two spare tire carrier, Two fire extinguisher
Usage	The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products,like crude oil,fuel oil and so on.

Phillaya special vehicle company
Is acomphensive corporation, with 20 years producding experience,majored in the technology r& d, import &export of kingds of semi trailers:
1-container flatbed and skeleton semi trailer
2-side wall open semi trailer
3-low bed semi trailer
4-store house bar fence semi trailer
5-van type semi trailers,
6-tanker semi trailer(oil fuel diesel, bitumen,bulkcement, chemical liquid)
(carbon steel, aluminum alloy, stainless steel)
7-LPG&LNG&CNGtank semi trailer
8-dump tipper semi trailer
9-wind blade extendable semi trailer
10-modular trailer etc.

Contact information:
Ms mina wang
Mob:0086-18553205207
Office tel:0086-532-83957810
Phillaya special vehicle co.,Ltd
Add:Qingdao,shandong, China
WWW.PHILLAYA.COM

Sincerely,
You arewelcome to visit our factory!
Wish long time cooperation can be built by our joint effort!
