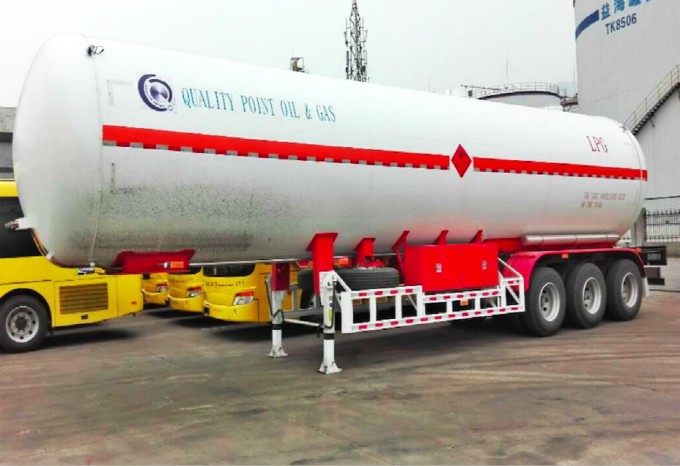

3-Axle 55cbm LPG Gas Transport Tank Semi Truck Trailer
Company information:
We're one professio
nal manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, co
ncrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to co
ntact us please.
1. Origin: China
2. Packing: Nude
3. Min. Order: 1
4. Transportation: Tianjin
5. Certification: ISO
6. Scale: Heavy Duty
7. Components: Trailer Axles
8. Material: Steel
9. Type: Semi-Trailer
10. Volume: 50 Cbm
11. Alxe: Fuwa
12. Legs: 28 T
13. Design Temprature: 50 Degree
14. Design Pressure: 1.77MPa
15. Design Tech: Sad
16. Tanker Material: 16 Mnr
17. Nominal Diameter: Dn80
18. Cylinder Thickness: 14 Mm
19. Model: 10 Mm2016 New 60m3 LPG Tanker Semi Truck Trailer1, suspension; Rigid, single point or air suspension
2, material of the main beam: Q345
3, Axles number: 2 3 4 axles.
4, Design type; Gooseneck or step wise
5, Jost landing gear, FUWA axles and tir-angle,double coin tires
Order information:
1, Payment terms: T/T or L/C.
2, Delivery time; Within 15 days after receipt your deposit or L/C
3, packing: In nude
4, shipment type: By bulk ship, ro-ro or container
Des
cription:
1.
More than 40 years professional manufacturer experience
2. Customized service
3. CCC, ISO9001, SGS, BV agreement
4. Small order can be accepted
5. Mean beam 12 months quality guarantee term, easily damaged parts warranty lifetime.
6. We accept 100% inspection, welcome to our factory at any time
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
| Standard in China |
| 1 | pssure vessels |
| 2 | GB/T19905-2005 Liquefied gas truck |
| 3 | Movable Pressure vessel safety technology and inspection procedures |
| Tanker Essential Information |
| 1 | Dimensions(l *w *h ) | 13000*2500*4000(mm) |
| 2 | Estimated Tare Weight | 14926KG |
| 3 | Payload | 25074KG |
| 4 | Total Weight | 40000KG |
| Shell Of Tanker |
| 1 | Products | LPG , Propane |
| 2 | Fluid property | Flammable |
| 3 | Design temperature | to 50ºC |
| 4 | Design pssure | 1.61MPa |
| 5 | Corrosion allowance | 1.0mm |
| 6 | weld joint factor | 1.0 |
| 7 | Major materials of bearing pssure | Tanker body : Q345R , 12mm GB713 |
| End plate : Q345R , 14mm GB713 |
| Main Beam : AG700 |
| 16MnIII NB/T47008 |
| 8 | Tanker volume | 59.7 cbm |
| 9 | Maximum filling weight | 25 tons |
| 10 | Compartments | ONE |
| 11 | Shape | Round(elliptica) |
| Detection |
| 1 | Heat treatment | Overall heat treatment in a furnace , 600ºC-640ºC |
| 2 | Flaw detection | 100% Flaw detection |
| 3 | Test PRESSURE | 1.61MPa |
| 4 | hydraulic test | 2.1MPa |
| 5 | Magnaflux | Aim at welding place flaw detection can not cover |
| Manhole (As customer's requirement ) |
| 1 | Quantity | 1 ; On top |
| Safety Valve (As customer's requirement ) |
| 1 | Quantity | One |
| 2 | Location | On the top of tanker ; |
| 3 | Size | A412F-25-22 DN100 or as custom requirement |
| LEVEL G UAG E(As customer's requirement ) ZGM 2.47/2.5 |
| 1 | Quantity and Model | |
| 2 | Location | On bottom of tanker |
| 3 | Size | As customer's requirement |
| Valve and pipe Detail (As customer's requirement ) |
| Running System |
| 1 | Axles | 3 | 13 TON FUWA Axles |
| 2 | Suspension system | 1 | FUWA leaf spring suspension 13*90*10 |
| 3 | Wheel rim | 12 | 9.0*22.5 |
| 4 | Tyre | 12 | Brand : Triangle,12R22.5 |
| 5 | Kingpin | 1 | 3.5",bolt on ,in rubbing plate,fabricated |
| 6 | Landing legs | 2 | JOST D200 single linkage, Gear type ,28T |
| Control System |
| 1 | Emergeny Cut-off Valves | 4 | Gas phase QGJ43F-25-8 liquid phase QGJ43F-25-7 |
| 2 | Ball Valve | 4 | Gas phase Q41F-25P-9 liquid phase Q41F-25P-8 |
| 3 | operating mode | 2 | Mechanical |
| 4 | Liquid gauge | 1 | ZGM 2.47/2.5 |
| 5 | Pressure indicating thermometers | 2 | WTQ-280 -40-80ºC level 1.5 |
| 6 | · pssuregage | 2 | YTN-100T 0-4MPa level 1.6 |
| Pneumatic Brake System |
| 1 | Spring brake chamber | 6 | FUWA |
| 2 | Air connector | 2 | FUWA |
| 3 | Relay Valve | 1 | A412F-25-22 DN100 1.72MPa |
| 4 | ABS | 1 | ABS |
| Electronical System |
| 1 | 7-Pin Socket | 1 | 24V 7-pin socket |
| 2 | LED Lamp | 1 | All kinds of lamp |
| 3 | Cable | 1 | Stander cable |
| Accessories |
| 1 | Small Tool box | 1 | |
| 2 | Wheel carrier | 2 | |
| 3 | Fire extinguisher | 2 | 8kg With red box |
| 4 | Cabinet | 2 | |
| 5 | Steel fender | 6 | |
| 6 | Static conductive belt | 1 | C shape |
| 7 | Impeller blasting | 1 | Completely |
| 8 | Paint | 1 | As customer requirements |
