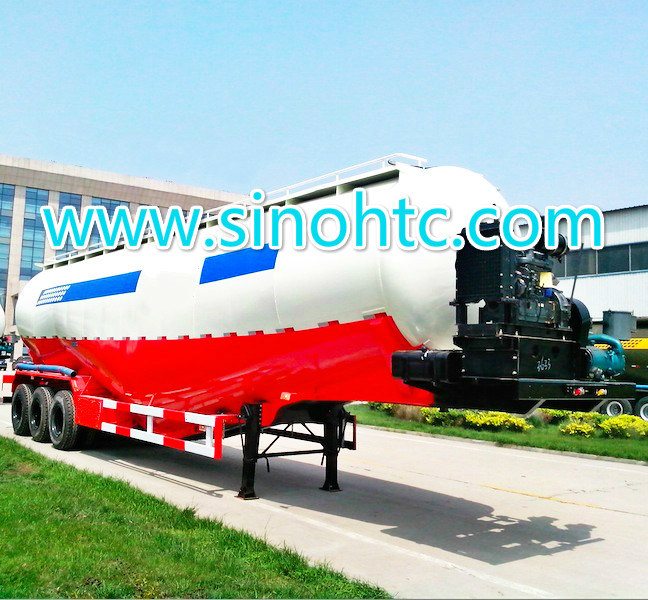

45m3 Bulk Cement Silo Tanker Semi Truck Trailer (HTC9405GFL)
40-55cbm Bulk powder tank trailer / Cement Tank Trailer
Hot sale! Cement tank trailer
Bulk Cement Tank Trailer, Bulk Cement Tank Semi Trailer, Cement Tank Trailer, Cement Tank Semi Trailer, Powder Tanker Trailer, Powder Tank Semi Trailer
Bulk cement tanker trailer, is specially designed for bulk powder cargo transportation, like cement, corn, wheet, and other grains. Round cylinder design is good for fast-speed discharging(3-4 discharging outlets) and co
ntainer transportation ( tanker body and chassis can be seperately loaded into co
ntaier and co
nncetec by bolts and nuts).
Capacity: 52CBM
Manhole Cover: Alluminum manhole cover
Air compssor: 9.5CBM air compssor
Engine: Disel engine or electrical motor-optional.
Chassis: Special designed chassis for heavy duty and extra durability
Axle: German style(BPW, L1, etc) or American type.
Suspension: Mechanical suspension or air suspension-upon requirement
Landing Gear: 28T, two speeds.
King Pin: 2"or 3.5" bolt-in King pin.
cement tank Model | HTC9370GSN |
| dimension: (mm) | 11950mmx2500mmx3900mm |
| Tare weight | 137000kg |
| tank volume | 40cbm |
| wheelbase | 6900+1305+1305 |
| tank thickness | tank body 6mm |
| Max Payload | 50Tons |
| overall weight | 50T |
| Unloading rate(KGS/MIN) | above 1200KGS |
| frame and running constructon |
| Axle | FUWA /3 (13T type) |
| tyre | customized |
| rim | 8.0-20/12 |
| leaf-spring | 80width*10pieces*13mm/6 sets |
| side beam | customized |
Kingpin |
JOST ,two speed |
| Electrical and braking system |
| Electrical system | 24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear light, rear front and side reflectors |
| Paint (shot blasting ) | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns.
Seawater proofed,waxed, |
| power system(engine and air-compssor) |
| engine | Diesel engine,Weifang 4102 type |
| Air-compssor | 10/2 doule cylinder |
