Detailed Description
FUNCTIONS
1. This series lowbed semi trailers are mainly used in heavy duty transportation for co
nstruction or logistic companies, such as excavator, digger, mover, crane, and building materials.
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different to
nnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be co
ncave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs
| 30-100T LOWBED SEMI TRAILER |
| Model | Rated Capacity | Axles | Tires | Tire Model | Tare Weight |
| PLY8400GYY | 30 T | 2 | 8 | 825R20 | 7.5T |
| PLY8401GYY | 60-80T | 3 | 12 | 10.00R20 | 11T |
| PLY8402GYY | 80-100T | 4 | 16 | 11.00R20 | 14T |
|
| Place of Origin | Shangdong province, China |
| Color | Any color will be available |
| Rated Load | 30-100 Tons |
| Tare Weight | 9900 kg |
| Wheel base | 1310 (mm) |
| Place of Origin | Shangdong province, China |
| Color | Any color will be available |
| Rated Load | 30-100 Tons |
| Suspension | Heavy Duty Leaf Spring |
| Front/Rear Overhang | 1950 mm |
| Outside Dimensions | 11000-19000x3000x1500 (mm) (LxWxH) |
| Material of the Main Beam | Q345B/ST52-3 manganese plates, automatic submerged arc,
Main-beam Height 500mm,
Lower flange: 20mm
Upper flange: 20mm
Mid Web: 12mm |
| Usage | For heavy duty machine, as transformer, crane, excavator transportation. |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Brake Air Chamber | Four double and two single chamber |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Floor | 3mm-5mm management plate |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 2 sets |
| Color and Logo | Depends on the buyer's requirement. |
| The traction pin | 2' & 3.5' inter-changeable |
| Pin Height | According to the height of the tractor saddle. |
Others:
Other Size/dimension or configurations will be available by customeri-zation. |
CONTACT:
Miss Allison
--- Exporting Manager Of Phil-la-ya Vehicle.
Mobile: +86 1855 3025 201
Office Tel: +86 532 83957810
Web: www.phillaya.com

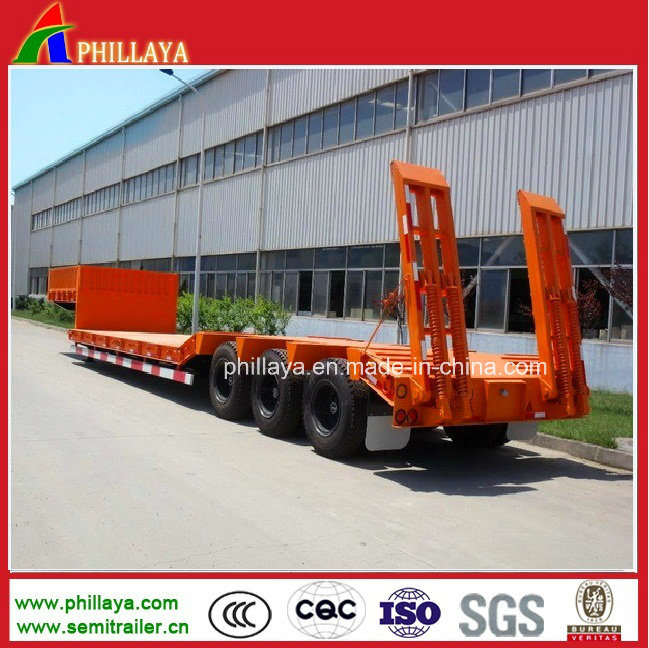

Product Image
