| Model | EG6040F |

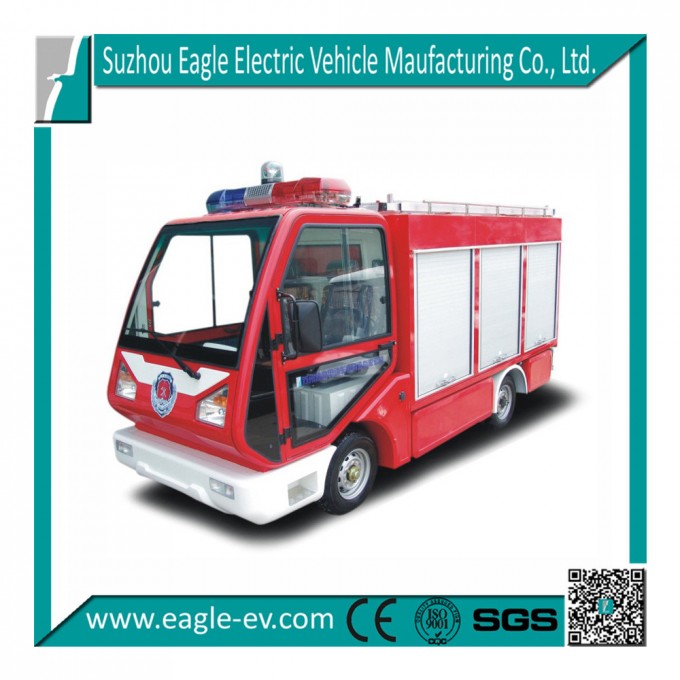

| Description | Electric fire truck |
| System | 72V/6.3KW Series |
| Key Components | |
| Battery | 12xT105(185Ah@5hr rate) |
| Motor | 6.3KW Chinese motor for 60minutes |
| Controller | Curtis 1209(400A@2minutes) |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at aspeed of 20km/h (km) | >42 |
| Max.Speed(km/h) | 55 |
| Minimum turning radius (m) | 5.3 |
| Max.Climbing ability (loaded) | 20% |
| Max.Movement after brake | ≤4m |
| Max.Loading weight | 2000kgs |
| Net weight | 1879kgs |
| Dimensions | |
| Overall dimensions (mm) | 4810×1500×2200 |
| Rear box dimensions(mm) | 3200×1500×1400 |
| Min.Ground clearance (mm) | 150 |
| Wheelbase (mm) | 2600 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
| Detailed Configurations:("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fibreglass |
| Cabin | Aluminum frame +glass door |
| Rear box | Aluminum box +rolling door |
| Water tank | PVC(1.3T) |
| STS(1.3T) |
| Rear Ladder | Aluminum |
| Ladder | On top, 2piece retractable, aluminum |
| Top fender | Aluminum |
| Windshield | Laminated glass |
| Rear Bumper | Steel Tube |
| Seats | With backrest and headrest, sliding |
| Floor | Anti-sliding ruber floor mat |
| Battery sliding system | |
| Side rear view mirror | Two pieces per cart |
| Fire fighting kits (including fire hose, fire pump ,fire foam, etc..This kit can be used to extinguish fire.) | Technical data(electric powered) |
| Technical data(gasoline powered) |
| Battery watering system,72V system | Without water supply tool |
| Manual Pump | Water supply tool (other water supply tools are available) |
| Fire hose bracket | |
| 65 fire hose | 6 rolls |
| Stream fire water gun | |
| Spray fire water gun | |
| 65 gated Wye Valve | |
| Fire hydrant wrench | |
| Hose ramp | |
| Fire pliers | |
| Hammer | |
| Fire spade | |
| Crowbar | |
| Flashlights | |
| Life line | |
| Air mask | |
| Firefighter clothing | 2 suites |
| Helmet with lighting | |
| Fire gloves | |
| Fire boots | |
| Safety Belt | |
| Fire hatchet | |
| Fire blanket | 1*1 meter |
| Taper barrel | 4pcs |
| Separate belt | |
| Danger caution plate | 2pcs |
| Breathing apparatus | 8pcs |
| Powder fire extinguisher | 3kgs 4pcs |
| Fire Axe | |
| Semicircular fire barrel | |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Seatbelt | 3-point, 2pcs |
| Electric system | |
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2front foglight, 2taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn. |
| Dashboard | Voltameter, ammeter, odometer, emergency switch;Combined switch, meter indicator |
| Audio System | Radio and MP3 adaptor |
| Speaker | 2pcs |
| Reversing alarm | |
| Switch assembly | Lights switch, horn switch, wiper switch |
| Emergency Switch | |
| Wiper | 12V, 50W, single arm |
| Siren | |
| Warning light | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A |
| Heater | For defrosting and heating, diesel, 2KW |
| Steering and Suspension | |
| Steering system | Recirculating ball steering gear+ steering wheel |
| Electrical power steering system | |
| Brake system | Four wheel hydraulic drum brake+ parking brake |
| Brake assistant | |
| Transmission | Clutch, gear box, transimmison shaft |
| Front suspension | Plate spring +hydraulic shock absorber |
| Rear suspension | Rear plate spring +hydrualic shock absorber |
| Rear axle | Integrated, Gear ratio 43:8 |
| Wheel &Tyre | 185R14C tubeless tire, 14*5.5 Jsteel rim |
