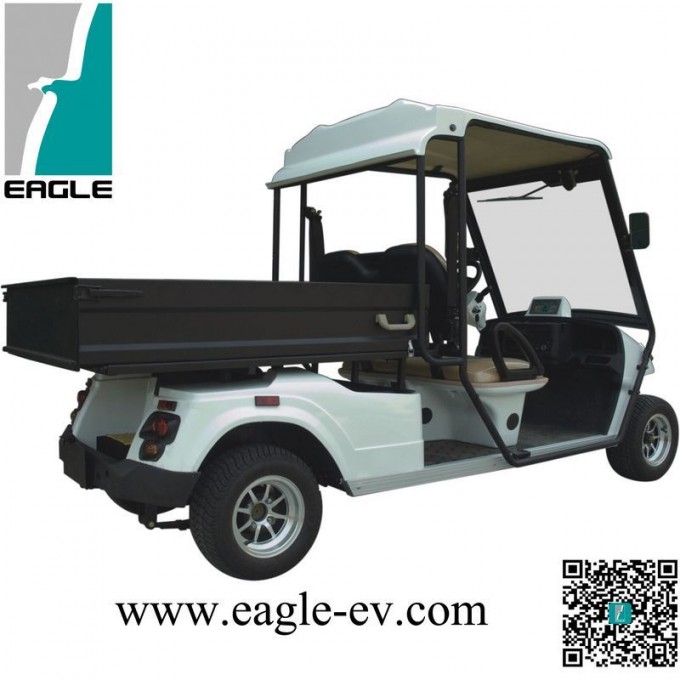

L7e EEC Certified Utility Cart, 2 Seater with Cargo Box, Pure Electric, Ec Type Approval Golf Cart,

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Specifications Model L7e EEC certified utility cart Key Components Power Source Pure Electric Electric System Both AC and DC system are available Battery Trojan battery Motor ADC motor or Chinese Motor Controller Curtis controller Charger China origin, input 110V-240V~50Hz-60Hz, Performance Passenger capacity 4 Range (loaded) based on flat road at aspeed of 20km/h (km)* Up to 100 Max.Speed Up to 40 Minimum turning radius (m) 4.5 Max.Climbing ability (loaded) Up to 20% Max.Movement after brake at speed of 20km/h ≤4m Max.Loading weight 300kgs Dimensions Overall dimensions (mm) 3150*1200*1850 Min.Ground clearance (mm) 120 Wheelbase (mm) 2450 Front wheel tread (mm) 855 Rear wheel tread (mm) 975 Body and frame frame Welded steel framework with phosphate+electro-coating treatment Body PP plastic front body +PP plastic rear body Roof Fiberglass Electric system Lighting system and horn Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm Steering and Suspension Steering system Single-stage rack and pinion steering system, automatic rocker compensating function Brake system 4-wheel hydraulic brake, front and rear drum brake, with hand parking brake Suspension system Front and rear plate spring +cylinder hydraulic shock absorber Driving mode Rear axle two stage deceleration, motor direct driving Rear axle Integrated, Gear ratio12.49:1 for AC system and 10.25:1 for DC system Wheel &Tyre 10x6 Alumimum wheel &205/50-10 4PR Option Backrest cover in wood finish Formed seat&backrest vinyl Dashboard in wood finish Steering wheel in wood finish Glove box door (include two locks) in black plastic Glove box door (include two locks) in wood finish (inside and outside) 12V accessory plug Hour meter Front independent suspension, Rear Integrated Axle On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A Body Color Up to 6kinds of standard color for option Loading Both Assembly and Disassembly are available
