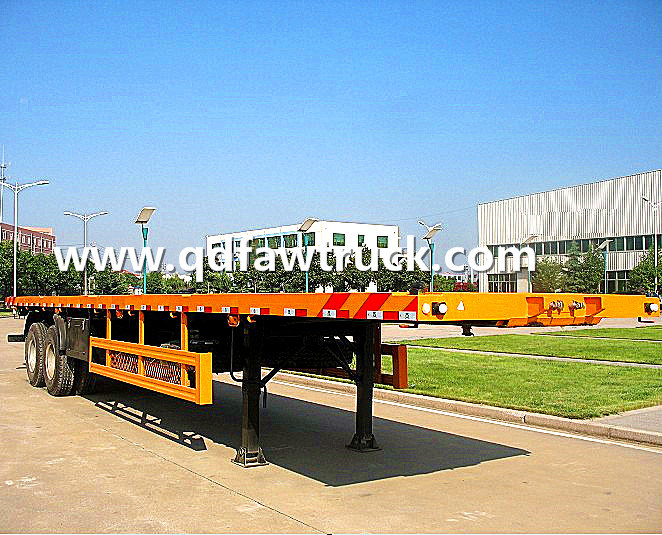

Truck Trailer Manufacturers Sell Flatbed Co
ntainer Semi Trailer
We are one truck refitting enterpriseapproved by Natio
nal Ministry Of Industry and Information Of China. We can supply from 2 tons to 70 ton trucks and various semi trailers. And we can provide all of the brands truck chassis made in China. HOWO, FAW,DONGFENG,FOTON,SHACMAN,BEIBEN,C&C, and so on. The followed specifications are for HOWO A7. You can co
ntact us directly and tell us you wanted brand and specifications, we'll recommend the suitable model to you.
Brand New Co
ntainer Trailer For Sale
Low Bed Trailer, Two Axle Low Bed Trailer, Low Bed Semi-Trailer, Lowbed Semi Trailer, Goose Neck Trailer, Goose Neck Semi Trailer, Truck Trailer, Trailer, Semi Trailer, Three Axles Semi Trailer, Lowbed Trailer for Equipment, Equipment Trailer, Heavy Duty Trailer, semitrailer, trailer truck, cargo trailer, flatbed trailer
1. We are the professio
nal manufacturer;
2. Payload range from 35ton to 45ton;
3. Competitive price and best service.
Tri-axle lowbed trailer Madagasca suppliers
1.3 axle
2.60 tons capacity
3. Mechanical/Hydraulic ladder
4.11/12.00R22.5
Tri-axle lowbed trailer Madagasca suppliers
1.3 axle
2.60 tons capacity
3. Mechanical/Hydraulic ladder
4.11.00/12.00R22.5Goose Neck Semi Trailer, Low Bed Trailer, Low Bed Semi Trailer, Low Bed Semi-Trailer, Semi Trailer, Semi-Trailer, Trailer, Cargo Semi Trailer, Sidewall Semi Trailer, Semi-Trailer, Trailer, Van Trailer, Dump Trailer, Tipper Trailer, U Shape Tipper Trailer, Flatbed Trailer, Flatbed Semi Trailer, Co
ntainer Semi Trailer, Oil tank trailer, and so on.
Goose neck fixed five rounds load(kg): 65000
Size(lengthxwidthxhighth)mm: 14370
x3000X2240
Load cylinder specification: 220/140-380
On changes the cylinder specification: 110/60-460
Below changes the cylinder specification: 110/60-380
Goose neck biggest turning corner: 70°
Goose neck five round junction plane height above terrain(mm): 1450
Splicing cargo plate of highth(mm): 1080
Turing radius(mm): According to trailer tractor size decision
Goose neck the kerb weight(kg): 20000.
| DIMENSIONS |
| Tare Weight | 8000kg |
| Payload | 50000kg |
| Total Weight | 38000kg |
| Overall Length | 11610mm |
| Overall Width | 2500mm |
| Overall Height | 2900mm |
| Wheel track | 2160mm |
| Wheelbase | 6525mm+1300mm |
| SPECIFICATION |
| Main frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight,Top Flange 14mm, width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm. |
| Floor | Steel Sheet 3mm thickness |
| Axle | Two Units of FUWA(brand) 13Ton axle |
| Suspension | A couple of FUWA (brand) underslung mechanical 2-axle suspension |
| Leaf Spring | Four sets of reliable local brand, 7-piece leaf spring,16x90mm |
| King Pin | One unit of SAF brand 2`` standard welded kingpin |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |
| Wheel Rim | Nine units of 8.25-22.5 rim |
| Tyre | Nine units of 11R22.5 tyre |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | One unit of WABCO 4 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector. |
| Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket;two sets of reliable ,local brand standard rear light,turn light,rear reflector,side light,side reflector etc.
One set of DAFA(brand ) 6-core standard Cable. |
| Painting | Sand blasting before painting
one coats of primer, anti corrosion
two coat of finish painting
Colour advised by client |
| Accessory | One box with a set of standard trailer tool |
alltypes trucks, semitrailers,lowbedsemitrailer,containertransportsemitrailer,sidewallsemitrailer,storehousebarseries,vanseries,carcarriersemitrailer,dumptrailer,tankertrailerseries,concretemixertruckseriesetc.Also,ourbusinesslinerangesfromtheresearch,development,anddesigntothemanufactureandsalesforotherautomobileaccessories,especiallyfortires.OurproductsaremainlyexportedtoPhilippine,Tunisia,Vietnam,Tanzania,Angola,Mongolia,Venezuela,UAE,Kenya,ect
1)Manufacturer,morethan14yrsprofessionalexperience.
2)CCC,SGSandISO9001certificate,one year guaranteetermprovided.
3)Smallordercanbeaccepted.
4)Anycolorandlogowillbeavailable.
5)Productscanbecustom-madeaccordingtoyourdesign,ordiversifiedneeds.
