2 axle 36000L oil tank trailer 35000L-55000L fuel tank trailer for sale, factory sale 36cbm fuel/oil tank trailer 36000L aluminum alloy fuel/oil tank semi trailer
gasoline tank trailers, gasoline trailer, fuel tank semi trailer
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also arefueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.

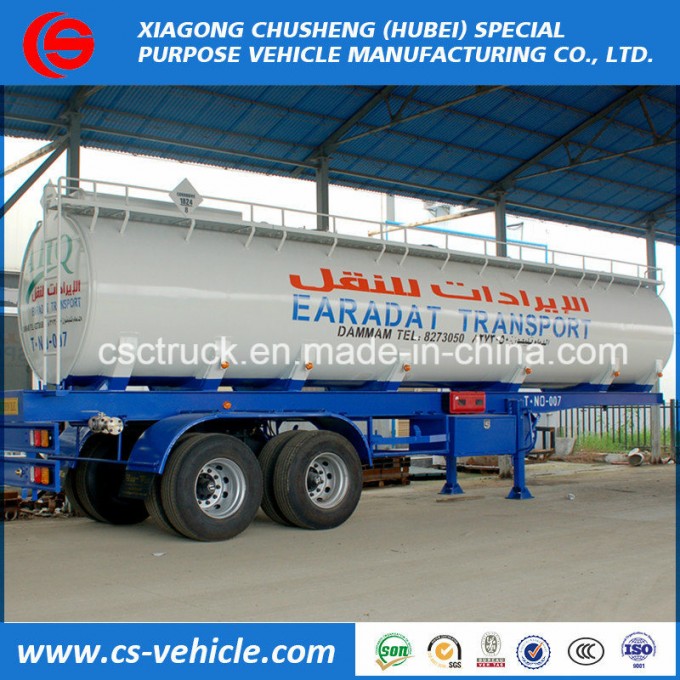

The pictures of 2axle 36000L oil tank trailer 35000L-55000L fuel tank trailer for sale, factory sale 36cbm fuel/oil tank trailer 36000L carbon steel fuel/oil tank semi trailer
Parameters of factory sale 42cbm fuel/oil tank trailer 42000L aluminum alloy fuel/oil tank semi trailer
| Main Dimensions |
| Overall Length | 11800mm | |
| OverallWidth | 2500mm | |
| Overall Height | 3600mm | |
| Tare Weight | 12800 kg | |
| Curb Payload | 36000 kg | |
| Loading Capacity | 42m3 | |
| Photo only for reference, final product can be made according to exact requirements.Client Logo on Tank body |
| Tank Body |
| Shape | Elliptical |
| Total Volume(m3) | 42CBM |
| Tanker Body Material | 6mm carbon steel |
| End plateMaterial | 6mm carbon steel |
| Baffles Material | carbon steel |
| Manhole of Baffles | 500mm |
| Manhole cover | 3 nos. API aluminummanhole covers, ∮500mm3setswith3breather valves,fitted with high flow vapor vent and sensing probe, three oil gauges. |
| Bottom Valve | 3set of API Pneumatic Bottom Valve, Pneumatic control |
| Top Safety Rail | 1 Set |
| Walkway | Aluminum Non-slip walkways |
| Discharging valve | 3set ∮100mm discharging valves |
| Vapor Return System | Aluminum line through barrel with section outboard of shell with vapor adapt-or and dust cover to be provided |
| No.of Compartment | 3 |
| Discharging Pipe | 4"rubber hose, 2pc,6m long |
| Anti-static wire loop | 1 |
| Chassis |
| Main Beams | Full Aluminum frame including outrigger and cross members.Special design Ibeam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
| Overturn Protection | Full length structural extrusion each side on top |
| Axle | 3axles |
| BPW13Ton. |
| Suspension | A complete set ofBPW Air bag suspension |
| Landing Gear | JOST brandC205Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST brand 2"or 3.5''bolt-in king pin |
| Suspension | air bagsuspension |
| Pneumatic Braking System | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim | 11.75-22.5 aluminumwheel rim,7piecesincluding one spare |
| Tire | 385/65R22.5tubelesstire with one spare tire,7pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anti-corrosive prime, 2coats of final paint |
| Ladder | Aluminum Ladder at rear |
| Lights &Sound | Reverse light and buzz to be installed |
| Wiring | 24V,7 wire system |
| Accessories | One standard tool box |
| Stickers ass required |
| Fire Extinguisher 2no. |
