Transport:
FlatbedTrailer:
1.by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation ;
2. 40ft co
ntainer or 45ft Container
Delivery Detail:
15 Working Days After Deposit

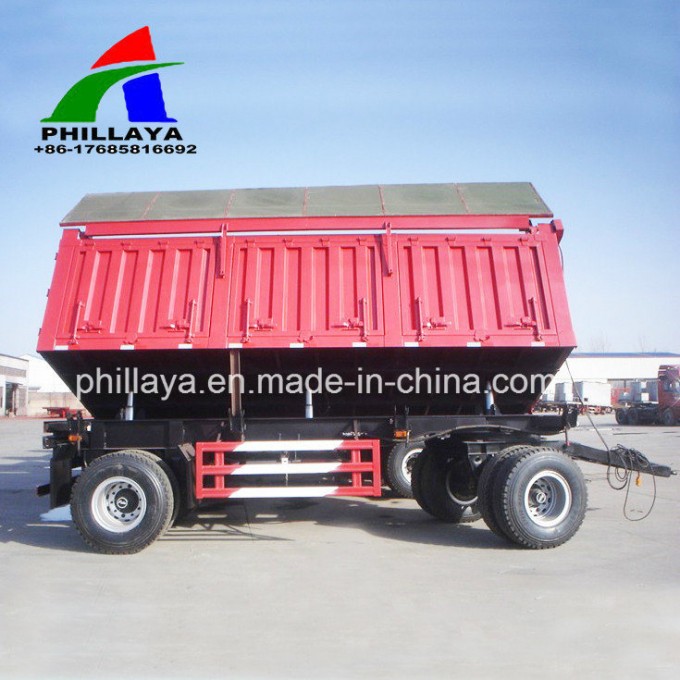

| Full trailer (produced according to customer's requirements, specifications below is just for reference) |
| frame size | 7500×2480×1250 mm |
| Tare weight | 3500 KGS |
| Payload | 40 ton |
| Floor plate | 3mm checker plate or as customer's requirement |
| turntable | 15 ton turntable |
| Stringer | The height of the beam is 500 mm, upper plate is12mm,
down plate is14mm,middle plate is 8mm. |
| Side beam | 14# / 16# channel steel |
| Transverse beam | 10# channel steel |
| draw bar | Heavy type |
| Painting | Wax whole trailer, white polyurethane |
| Axles | 13 ton axles |
| Wheel rim | 8.25-22.5 |
| Tire | 11.00R20/12R22.5/11.00R-22.5 |
| Lifting system | Full set of Hyya hydraulic lifting system / full set of Jiuzhouzhongli hydraulic lifting system (only if needed) |
| Leaf spring | 90width*10pieces *13thickness |
| Suspension | Mechanical suspensions |
| Brake chamber | 2 pcs T3030, 4 pcs T30 |
| Air connector | one units reliable local brand stander air connector |
| Relay valve | WABCO valve |
| 7-pin socket | one unit of 24V 7-pin socket |
| Lamb | tail lamb with turn signal, brake lightincluding a whole set of stander lamb |
| Cable | one set of stander cable |
| Tool box | 1 |
| Wheel carrier | 1 |
The above trailer is just one of our products, we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can design for our customer's special need. |
CONTACT:
Ms. Anna
Mob: +86 17685816692
www.phillaya.com
@@@ ~Please see below specifications for your first reference.
We could customize as your actual demands ~!
More details co
ntact me freely my dear friend, waiting for your call ~!
A series of trailers
FUNCTIONS
1. This series full trailers are mainly used in the agricultural products, and bulk cargo or electrical appliance transportation.
2. The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different to
nnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The side wall height and side or back door numbers and opening ways have several options for your better usage.
BRIEF INTRODUCTION TO OUR FACTORY
Phillaya internatio
nal trading Co., Ltd, aspecial vehicle manufacturing corporation with the professio
nal experience more than 15 years, certified by the Chinese government manufacture,
Majored in semi trailer, special vehicle manufacture, our products are mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries
Professio
nal products
| Buying Guides |
| 1 | You send us your enquiry |
| 2 | We shall reply you with the quotation within 12 hours |
| 3 | We negotiate on the configuration that you need |
| 4 | Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production |
| 5 | Manufacturing process updated news → completing production |
| 6 | Balance payment → ex works → shipment → custom clearance → A/S service for 1 year |
| Why to cooperate with Phillaya |
Ø Price - competitive price (we are manufacturer ourselves)
Ø Quality - reliable with guarantee period of 1 year long (we have over 15 years' manufacturing experience)
Ø Delivery - timely for sure (experienced engineer and workers under efficient management, with advanced equipment and technology)
Ø Service - prompt reply, efficient communication by phone/email/app online. There are always perfect solutions to problems that you can come up with. |
SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY
1.3C&ISO Agreement, 1Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color &Logo Available
4. The Product Dimension +Specifications Can Be Designed As Your Needs
DEALING PROCESS
1. Send us inquiries on your desired product /mdel through our co
ntact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Co
nfiguration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updat
ed news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1year.
WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT. WISH THE LONG-NEW MUTUAL BENEFIT &BUSINESS RELATIo
nSHIP CAN BE BUILT BY OUR JOINT EFFORTS
