Detailed Description

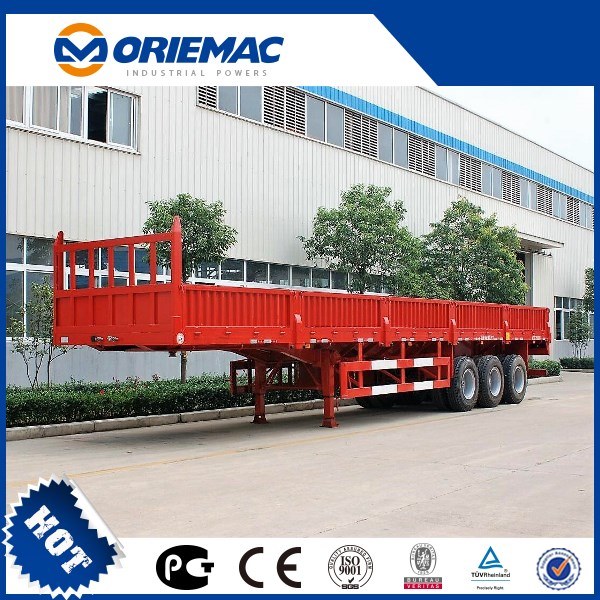

3 axles Cargo semitrailer
| 3 axlesCargo semitrailer |
| Overall DimensionLength×Width×Height (mm) | 12500*2500*2700 |
| Rated Payload(Ton) | 35Tons |
| Curb Weight(kg) | 6250 |
| Rear Wheel tread(mm) | /1840/1840/1840 |
| Wheel base(mm) | 6330+1310+1310 |
| Cargo body |
| Cargo box dimensions (L xW xH)(mm): | 12290*2320*600 |
| Standard specification |
Main frame
| Heavy duty and extra durability designed; welded by automatic Submerged-Arc processes |
| Axle | Three Units of 13T FUWU axle |
| Suspension | A couple of mechanical tandem suspension |
| Leaf Spring | one set of leaf spring |
| King Pin | One unit of 3.5" standard bolt-in kingpin, 90# |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |
| Tyre | 12 units of 12R22.5 tubeless tire |
| Braking System | A system with emergency brake and parking brake |
| ElectricalSystem | One unit of 24V 7-pin ISO standard1185 socket; two sets of standard rear light, turn light, rear reflector, side light, side reflector etc. |
| Painting | Sand blasting before painting;
one coat of primer, anti corrosion
two coats of finishing painting;
colour as customer choice |
| Tool box | One set |
| Spare wheel carrier | Two set |
