Detailed Description

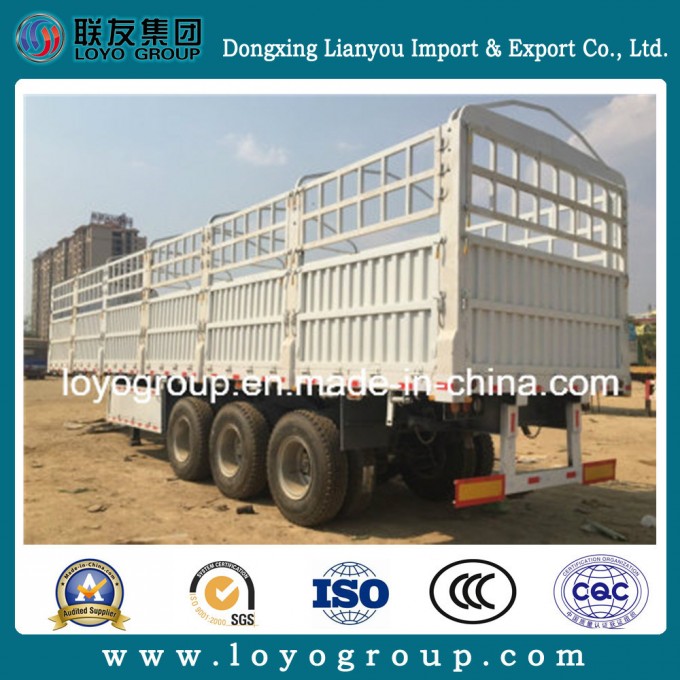

High quality 3three Stake truck Semi-trailer
Transportation truck for agricultural stake semi trailer
Details:
| Name | 3 axles stake truck |
| Manufacturer | LOYO |
| Kerb weight (Kg): | 80,00KG |
| Loading capacity: | 40000-45000KG |
| Overall Dimension (LxWxH) | 12.24mX2.44mX2.15m
(The final size depends on the design drawings) |
| Specification | |
| Chassis | Heavy duty extra durability designed Ibeam,Top flange 10mm,Middle Flange 6mm,Buttom Flange 14mm |
| Axle | Number | 3 | FUWA brand | Capacity: | 13T |
| Suspension | Mechanical Suspension |
| Leaf spring | Leaf spring |
| Tire | 11.00R20 Radial tire,13pcs,Double Coins tyre |
| Kingpin | 2'/3.5' bolt-in king pin |
| Landing gear | Jost brand two-speed,manual operating,heavy duty landing gear |
| Twist Lock | 12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container |
| Vehicular applications | Container(20ft,40ft.45ft) transport |
| Brake | pneumatic brake system |
| Painting | Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint. |
| Tools box | 1 standard Toolbox |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
| be suitable for long distance transportation of inlandand ocean. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
