Detailed Description
XCM Hot 32m Water Tower Firefighting Truck JP32 with Lower Price
1. Working height: 32M
2. Engine Power: 320kw
3. Chassis: Germany Benz Actros334
| Main technical data in travel configuration |
|---|
| Category | Item | Unit | Parameter |
| Dimension | Overall length | mm | 11420 |
| Overall height | mm | 3900 |
| Overall width | mm | 2500 |
| Wheel base | Axles 1and 2 | mm | 4500 |
| Axles 2and 3 | mm | 1350 |
| Tread | Front axle | mm | 2035 |
| Rear axle | mm | 1804 |
| Weight | Extinguishant rated load weight | Water | kg | 6000/3000 |
| Foam | kg | 6000/3000 |
| Total vehicle curb weight | 23950 | Front axle | kg | 5200 |
| Dual rear axles | kg | 17650 |
| Weight with full load | 32000 | Front axle | kg | 6700 |
| Dual rear axles | kg | 25300 |
Travel performance
| Max. travel speed | km/h | ≥90 |
| Min. turning diameter | m | ≤20 |
| Approach angle | ° | 16 |
| Departure angle | ° | 9.5 |
| Braking distance(at 30km/h) | m | ≤9.5 |
| Min. ground clearance | mm | 290 |
| Max. gradeability | % | ≥25 |
| Main technical data for operation |
|---|
| Main performance | Rated working height | m | 32 |
| Max. working radius | m | 19 |
| Outrigger span(longitudinal×lateral) | m | 6.0×5.4 |
| Elevating range | ° | -3~80 |
| Working speed | Boom deploying time | S | ≤110 |
| Outrigger extending time | S | ≤30 |
| Slewing speed | r/min | 0~2 |
| Fire-fighting performance | Fire pump rated flow | L/s | 70 |
| Fire pump rated pssure | MPa | 1.7 |
| Water monitor | Water monitor rated reach | m | ≥85 |
| Water monitor rated flow | L/s | 70 |
| Water monitor rated pssure | MPa | ≤0.8 |
| Foam monitor rated reach | m | ≥65 |
| Foam monitor rated flow | L/s | 64 |
| Foam monitor rated pssure | MPa | ≤0.9 |
| Nozzle travel range | Up and down:-135°~0° Left and right:±107° |

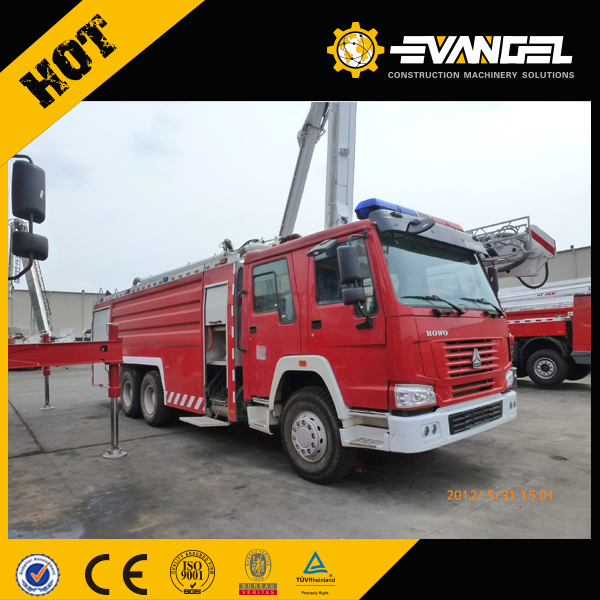

Product Image
