Engine on The Telescopic Handler Xt670-140 for Perkins

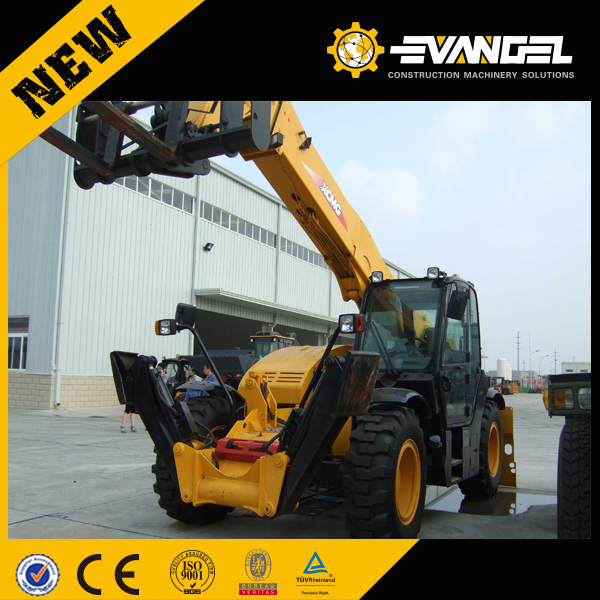

Telescopic Forklift XT670-140/Telehandler
Main Feature:
Telescopic forklift Truck CE certify, is a kind of Multi functional engineering machinery. Telescopic forklift truck can be used for lift and carry, with good stability and efficiency. Telescopic forklift truck has compact frame, flexible operation, sensitive lift, automatic adjustment, high carrying capacity.
1, adopt the DEUTZ engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
2, Equipped with power transmission, compact structure, high rigidity.
3, With articulated frame, small turning radius.
4, wheel drive, steering by front wheel, and so on.
5, The drivers cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comportableness of the operating
6, Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
7, Multifunction instrument can be chosed...It is a kind of machinery which is suitable for lifting and carrying in narrow ground.

Dimension		XT670-140	Unit
overall weight		10500	kg
engine capacity	DEUTZ	70	kW
	Perkins	74.5	kW
Max. Rated Load		3500	kg
Lift capacity to full height		3100	kg
Lift capacity at full reach		635	kg
Lift height		13700	mm
Reach at maximum lift height		1050	mm
Maximum forward reach		9460	mm
wheel base		3250	mm
wheel tread		1970	mm
Min. Ground Clearance		370	mm
Overall length		6290	mm
Host maximum length (from tail to front front tyre )		5078	mm
Host maximum width (including leg)		2500	mm
Host maximum height (including light)		2600	mm
Fork length		1200	mm
Suspension length		1191	mm
Departure angle		36	°
Max. traction ( load-free )		48	kN
Min. turning radius (tire lateral)		4238	mm
Max. grade ability		30	°
Travel speed	I	9.52	km/h
	II	23	km/h
	I	9.52	km/h
	II	23	km/h
