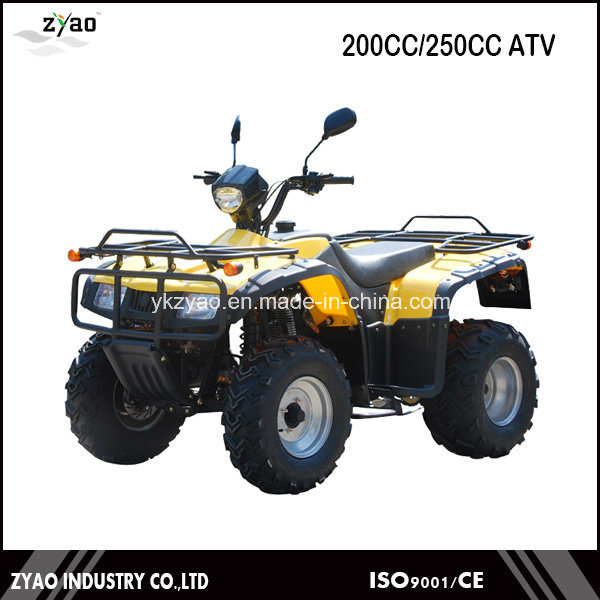

Road Quad Bike Loncin 200cc/250cc ATV Parts Street ATV

Manufacturer: ATV/Electric Scooter/Go Kart/UTV...ETC.
and all spare parts.
ATV/QUAD: 50CC/70CC/90CC/110CC/125CC/150CC;
200CC/250CC/300CC/350CC/400CC/500CC/600CC
1), Packaging & Delivery:

Packaging Details:

Film steel frame inside and strong carton outside. We can also do themark and stickeras buyersrequire. 20GP:12unit 20GP:24unit 40HQ:36unit

2),Specification:

IDENTIFICATION
1.Model No.	ZYA-24-13-10-200D	ZYA-24-13-200DW
2.Warranty	one year for engine, 6months for other parts
3.Model No. in EEC certifcate	CE	CE
ENGINE
4.Cylinder	Single	Single
5.Cooled System	air	water
6.Engine Stroke	4 Stroke	4 Stroke
7.Bore*Stroke(mm)	63x62	63x62
8.Displacement(ml)	200cc	200cc
9.Max.power(kw/rpm)	11kw/7500rpm	11kw/7500rpm
10.Max.torque(n.m/rpm)	13.5N.m/5500rpm	14.5N.m/5500rpm
11.Ignition Type	CDI	CDI
TRANSMISSION
12.Transmission Type	Manual Clutch,4 fowarder gear,1 reverse gear
13.Primary Drive(Rear Wheel)	chain	chain
14.Reverse	Yes	Yes
15.Max Speed(km/h)	>=75	>=75
WHEEL
16.Front wheel	23X7-10	23X7-10
17.Rear wheel	22X10-10	22X10-10
SUSPENSION
18.Front Suspension	A x swing arm,	A x swing arm,
19.Rear Suspension	mono shock swing arm	mono shock swing arm
BRAKE SYSTEM
20.Front brake	Drum	Drum
21.Rear brake	Disc	Disc
22.Braking distance	8m(30km/h)	8m(30km/h)
TECHINCAL SPECIFICATIONS
23.Product Dimensions(mm)	1890x 1180 x 1220mm	1890x 1180 x 1220mm
24.Ground Clearance(mm)	155	155
25.Wheelbase(mm)	1110	1110
26.Mini Turning Radius(mm)
27..gross weight(kg)	228	228
28. net weight(kgs)	206	206
29.Fuel Capacity(L)	4	4
30.Fuel consumption
SEAT
31.Seat Height(mm)	900	900
32.Number of Seats	2	2
COLOR
33.Standard Color	Red/Yellow/Blue/Green/Black/White
34.Optional Color	Green camo,Yellow camo,Snow Camo,metallic,Carbon
LOADING
35.Packing Size(mm)	1940x1090x840mm
36.Quantity	20GP:12pcs 40HQ:36pcs
IDENTIFICATION
1.Model No.	ZYA-24-13-10-250DW	ZYA-24-13-10-250-F
2.Warranty	one year for engine, 6months for other parts
3.Model No. in EEC certifcate	CE	CE
ENGINE
4.Cylinder	Single	Single
5.Cooled System	water	air
6.Engine Stroke	4 Stroke	4 Stroke
7.Bore*Stroke(mm)	72x61.2mm	71x58
8.Displacement(ml)	250cc	250CC
9.Max.power(kw/rpm)	12kw/7500rpm	13kw/7500rpm
10.Max.torque(n.m/rpm)	19.5N.m/3500rpm	17N.m/5500rpm
11.Ignition Type	CDI	CDI
TRANSMISSION
12.Transmission Type	4 fowarder gear,1 reverse gear	semi-automatic
13.Primary Drive(Rear Wheel)	chain/shaft,drive	shaft,drive
14.Reverse	Yes	Yes
15.Max Speed(km/h)	>=75	>=75
WHEEL
16.Front wheel	23X7-10	23X7-10
17.Rear wheel	22X10-10	22X10-10
SUSPENSION
18.Front Suspension	A x swing arm,	A x swing arm,
19.Rear Suspension	mono shock swing arm	mono shock swing arm
BRAKE SYSTEM
20.Front brake	Drum	Drum
21.Rear brake	Disc	Disc
22.Braking distance	8m(30km/h)	8m(30km/h)
TECHINCAL SPECIFICATIONS
23.Product Dimensions(mm)	1890x 1180 x 1220mm	1890x 1180 x 1220mm
24.Ground Clearance(mm)	155	155
25.Wheelbase(mm)	1110	1110
26.Mini Turning Radius(mm)
27..gross weight(kg)	228	228
28. net weight(kgs)	206	206
29.Fuel Capacity(L)	4	4
30.Fuel consumption
SEAT
31.Seat Height(mm)	900	900
32.Number of Seats	2	2
COLOR
33.Standard Color	Red/Yellow/Blue/Green/Black/White
34.Optional Color	Green camo,Yellow camo,Snow Camo,metallic,Carbon
LOADING
35.Packing Size(mm)	1940x1090x840mm
36.Quantity	20GP:12pcs 40HQ:36pcs

3),More Pictures:



4), Packing Way:


5), Delivery Time/Delivery Way:
A),Within 15-20days after receiving deposit;
B),By Sea;

6),FAQ:

1.	ask:	What is the minimum order quantity?
	answer:	MOQ for ATV: 1x20FT, MOQ for spare parts: 5pcs
2.	ask:	What is the production and delivery time?
	answer:	Delivery for ATV: 20-30 days. Delivery for spare parts: 5-15days
3.	ask:	Can I order a sample ?
	answer:	Yes for spare parts,and need 200 USD as sample fee for ATV.
4.	ask:	Can we use our own shipping agent ?
	answer:	Sure.
5.	ask:	Can we mix the 20ft container ?
	answer:	Yes, you can mix no more than 4 models in a 20ft container and no more than 6 model in a 40HQ container.
6.	ask:	Can we use our own logo or design for sticker ?
	answer:	Welcome!
7.	ask:	How often do you develop new models?
	answer:	We regularly develop 1 new model per 3 months.
8.	ask:	Do your factory have Certificate?
	answer:	We have CE for all of our ATV products and EEC for mostly of ATV products.
