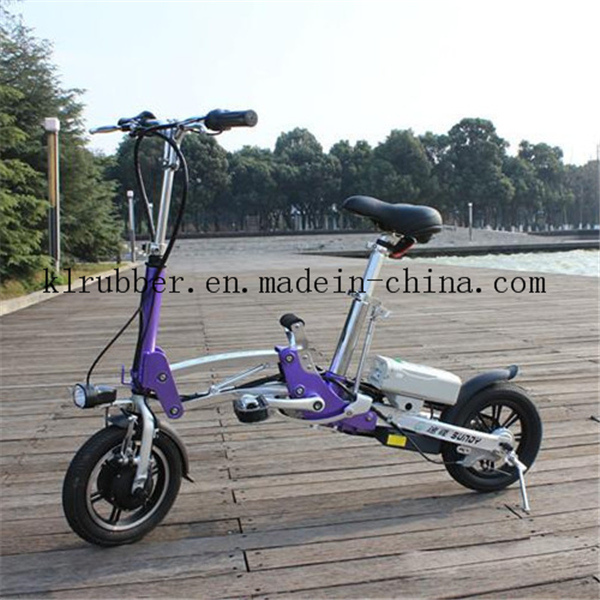

Aluminum Light Weight Folding Electric Bicycle for Youth

Aluminum Light Weight Folding Electric Bicycle for Youth

1: Saddle 2: Middle Seat Post 3: Big Seat Post 4: Folding Lift Handle 5: Lock System 6: Support Post 7: Li-ion Battery 8: Rear Wheel 9: Kickstand 10: E-control set 11: Support Lock end 12: Arc link 13: Top Four-bar link 14: Telescopic link 15: Down Four-bar link 16: DC Motor 17: Front Wheel 18: Quick-release Fastener 19: Stem 20: Foldable Handlebar with throttle grip



2.: Operating-process:
1): Folding process: Hold 3 and6 together by one hand, after they are in touch closer fold state, 2 will slid down to the bottom automatically, and then lift4 up quickly, by your hearing the sound of "click", it means that5 is in locked status. Folding process is finished.
2): Unfolding process: Lift the saddle1, let 3and6 rise back in their right place, and then kick 9 back softly, the frame of the Mini will be pulled open quickly.
Keep attention: Before riding, you must check whether 6 has been opened to its right position.

1. 12'' Mini Electric bicyclefig.		2. Li-ion Battery fig.
Mini Size : L*W*H	1255*490*1090mm	Type:	Li-ion Battery
Folding Size : L*W*H	640*280*810mm
N.W :( KG )	16Kg	Battery Content Capacity ( Ah ) : (optional)	6.75Ah/9Ah
Max Speed : Km/h	20 ~ 23Km/h
Battery once Full Charge Range:	By net E-power: 30-40km , With Pedal assistant riding:50-60km	Nominal Voltage(v):	36V
F/R wheel center distance	980mm	once Full Recharge Needing Time(h):	3-5h
Max. Loading:	<180Kg
3. DC Motor fig.		4. E-controller set fig.
Type:	DC Brushless with gear	Bottom-voltage limited protection index(V):	28.5 ± 1V
Output Rating(W):	180W/200W
Rating Rotating Speed(r/min):	235 r/min	E-current limiting protection index(A):	11 ± 1.5A
Rating Voltage (V)	36V	Riding Power Resource Type:	Riding by li-ion battery power, or with pedal assistant
Output Rating Torque:	6 N.m	Climbing Capacity:	≤ 7 °
