Detailed Description
NAME 18" -48V/36V
Model TDP001Z
Specification 1520mm*580mm*1060mm
Wheel ba
se 1100mm; Tyre&co
lon; 20*1.75
Riding way 1. Electric riding, 2. Booster riding, 3. Human riding
Max Speed 25~27km/h
GW a
bout 27kg
Battery Type The second and third generation of polymer ion power battery
Battery capacity 48V 10AH; 48V 8AH; 36V 10AH
Charging time 6~8hours
Rated voltage 48V/36V
Motor type Brushless speed clutch motor
Rated power 240W
Rated torque 7N. M
Limit current protection value 13+-1A/15+-1A
Under-voltage protection value 39+-1V/30+-1V
Gradeability <10
Load 75kg

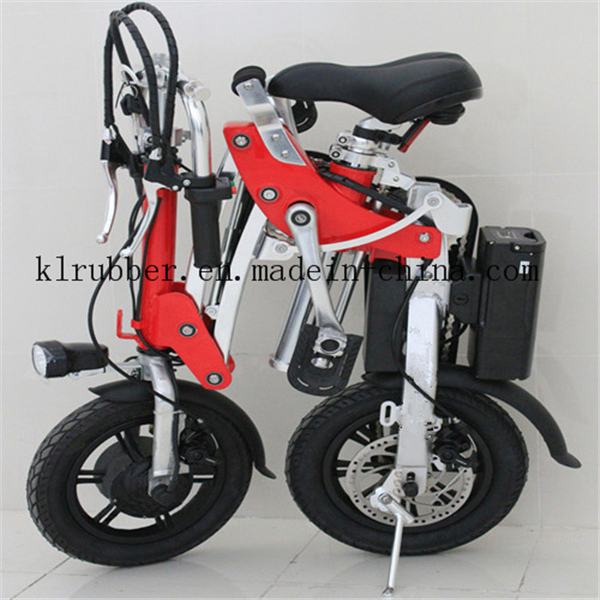

| 12inch Shimano Inner 3 speed Model |
| Basic Spec. | Unfolded Size(mm) | 1260 × 550 × 1090 |
| Folded Size(mm) | 610 × 275 × 810 |
| Packing size(mm) | 620×280×835 |
| Wheel base | 980mm |
| Wheel | 12inch wheel with spokes; Aluminum Alloy |
| frame | Aluminum and Magnesium Alloy |
| Overall Height | 109cm |
| Net Weight/Gross Weight | 16kgs(without the battery)/23kgs |
| Front Brake | V Brake |
| Rear Brake | Special Roller Brake for Shimano |
| Transimission | inner 3 speed |
| Electric Spec. | Motor | 250w brushless gear motor |
| Traction | Front wheel drive |
| Battery | Lithium battery; 36V/9AH; 2.4KGS |
| Charge Time | 3~5 hours |
| Head lamp | LED |
| Performance | Max Load | 110kgs |
| MAX Speed | 25KM/H |
| Range(By Electricity Only) | 30-40KM |
| Range(With pedal-operated boost) | 50-60KM |
| Color | | |
| Packing | | 198pcs/20'GP; 396pcs/40'GP |
