Detailed Description
SpecificationsandTechnicalData

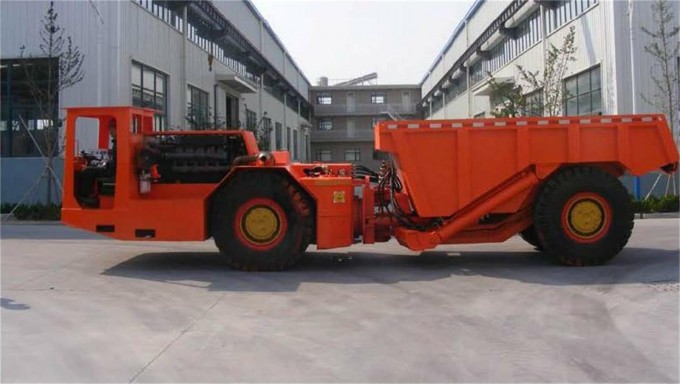

GPT-15UndergroundDumpTruck
1.1ConfigurationoftheIntegratedEquipment
| Engine | | |
| Manufacturer | DEUTZGermany |
| Type | BF6M1013EC | |
| Design | water-cooleddieselenginetwo-stagecombustion |
| Ratedpower | 165kW | |
| Torqueconverter | | |
| Manufacturer | DANA | |
| Type | C273 | |
| Design | single-stageindustrialtypewithauxiliary |
| drivesforsteeringanddump/hoist |
| hydraulicsystems |
| Powershifttransmission | | |
| Manufacturer | DANA | |
| Type | R32000 | |
| Design | powershifttransmissionwith4forward |
| and4reversegearseach |
| DriveAxles | | |
| Manufacturer | KESSLER | |
| Type | D91 | |
| Design | Rigiddrive | planetaryaxle |
| NO-SPIN | Antiskiddifferential, |
| withwetandmulti-disksbrake |
| Rearaxleswingangle | ±80 | |
| Designofbrakesystem | | |
| Designofservicebrake | multi-diskbrake,externallycooled |
| Designofworkingbrake | POSI-Stop | Spring | Brake, | full | |
| hydraulicmulti-diskswetbrakeon | |
| eachwheel,Simplifiedbrakesystem, | |
| Fullyenclosed | hydrauliccooling, | |
| workingbrake,parkingbrakeand | |
| emergency | brake | centralized, | spring | |
| brake,hydraulicrelease. | | |
| Hydraulicsystem | | | | | | |
| Dump/hoisthydraulicsystem | | | | | |
| Numberofhoistcylinders | 2 | | | | |
| Boomraising | | 19s±2s | | |
| Bucketfalling,fromdumpingposition | 20s±2s | | |
| Steeringhydraulicsystem | | | | | |
| Numberofsteeringcylinders | 2 | | | | |
| Brandsofmain | parts: | PARKER | brand | for | steering |
| | pump,multi-directional | control |
| | valveandconversionvalve. |
| Wheelsandtires | | | | | | |
| Rim | | 14.00-24 | | |
1.2PerformanceoftheIntegratedEquipment
Maindimensions(transportation)
| Length | 8200±50mm |
| Width | 2200±50mm |
| Height | 2400±50mm(topofcabin) |
| Bucketcapacity(SAE,heaped) | 7.5m3 |
| Maxunladingheight | 4400±50mm |
| Loadingheight | 2000±50mm |
| Unladingangle | 65°±1° |
| Innerclearancecircle(radius) | 4300±100mm |
| Outerclearancecircle(radius) | 7580±100mm |
| Steeringangle | ±400±20 |
| Swingangle | ±80 |
| Approachangle | 15° |
| Wheelbase | 4100mm |
| Min.offgroundclearance: | 265mm |
| Max.attractionforce: | 150KN |
| Weights | |
| Operatingweight | 15000kg |
| Payload | 15000kg |
| Drivingcapacities | |
| Maximumdrivingspeed,ladenforward/reverse,onalevelroadway |
| 1stgear | 0~3.5km/h |
| 2ndgear | 0~7km/h |
| 3rdgear | 0~13km/h |
| 4thgear | 0~23.0km/h |
| Maximumadmissiblegradient | 22%(15°) |
| Hydraulicsystem | |
| Ratedpssureforworkingsystem | 16MPa |
| Ratedpssureforsteeringsystem | 16MPa |
| Ratedpssureforbrakingsystem | 11MPa |
| Ratedpssureforsteeringsystem | 16MPa |
| Ratedpssureforoilfillingsystem | 1.69~1.96MPa |
| Electricalequipment | |
| Operatingvoltage | 24V |
| Battery | 2×12V/165Ah |
| Main/reversingheadlights | 50W |
| Generator | SiliconcontrolledACgeneratorminus |
| Earth28V55A |
| Motor | DCmotor24V5.4KW |
| (6) | Fillingvolumes | |
| Fueltankvolume | 350L |
| Hydraulictank | 2x140L |
| (7) | Steeringsystem | |
| Type | Centralarticulated,fullyhydraulicpowersteering |
| (8) | FirePreventionsystem | |
| Type | ManualFireExtinguisher |
