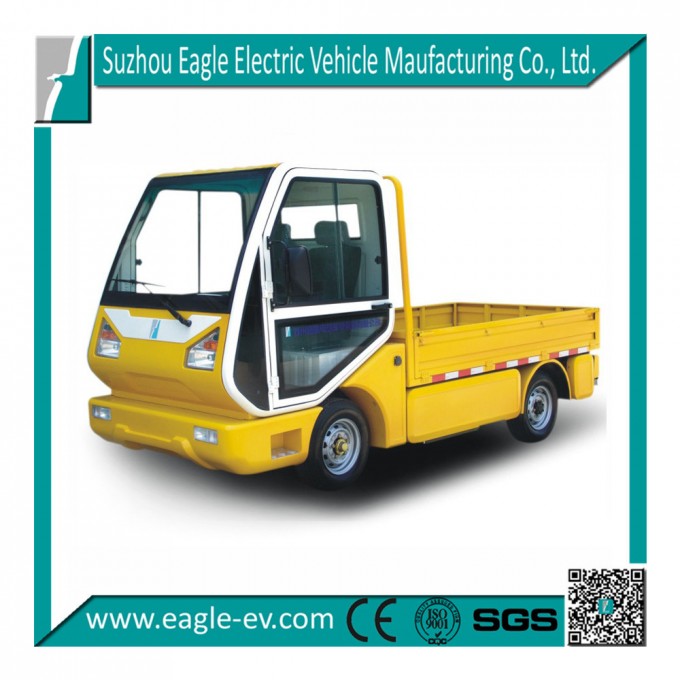

| Model | EG6022H |
| Description | 1.0T electric truck |
| System | 72V/5KW Series |
| Key Components |
| Battery | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor |
| Controller | Curtis 1205 (400A@1minute) |
| Performance |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at aspeed of 20km/h (km)* | >55 |
| Max.Speed(km/h) | 45 |
| Minimum turning radius (m) | 5.3 |
| Max.Climbing ability (loaded) | 20% |
| Max.Movement after brake at speed of 20km/h | ≤NA |
| Max.Loading weight | 1000kgs |
| Net weight | |
| Dimensions |
| Overall dimensions (mm) | 4200x1500X2150 |
| Rear cargo bed dimension(mm) | 2600x1500X319 |
| Min.Ground clearance (mm) | 150 |
| Wheelbase (mm) | 2370 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
| Detailed Configurations:("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fibreglass |
| Rear Bumper | Steel Tube |
| Cabin | Aluminum frame +glass door |
| Windshield | Laminated glass |
| Seats | With backrest and headrest, sliding |
| Floor | Anti-sliding ruber floor mat |
| Battery sliding system | |
| Side rear view mirror | Two pieces per cart |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Battery watering system,72V system | Without water supply tool |
| Manual Pump | Water supply tool (other water supply tools are available) |
| Seatbelt | 3-point, 2pcs |
| Electric system | |
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2front foglight, 2taillight(turn signals and brake lights), with DC-DC converter (converting from 48V to 12V), horn. |
| Dashboard | Voltameter, ammeter, odometer, emergency switch;Combined switch, meter indicator |
| Audio System | Radio and MP3 adaptor |
| Speaker | 2pcs |
| Reversing alarm | |
| Switch assembly | Lights switch, horn switch, wiper switch |
| Emergency power-off button | |
| Wiper | 12V, 50W, single arm |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A |
| Offboard, Delta-Q 72V/12A 2pcs |
| Heater | Diesel, for defrosting, 2KW |
| Amber Flashing light | On top |
| Steering and Suspension | |
| Steering system | Recirculating ball steering gear+ steering wheel |
| Electrical power steering system | |
| Brake system | Four wheel hydraulic drum brake+ parking brake |
| Brake assistant | |
| Transmission | Clutch, 4F+1R gear box, transmission shaft |
| Front suspension | Plate spring +hydraulic shock absorber |
| Rear suspension | Rear plate spring +hydrualic shock absorber |
| Rear axle | Integrated |
| Wheel &Tyre | 175R13C tubeless tire, 13*5.5 Jsteel rim |
