Detailed Description
This Forland 5 ton dump truck means the loading capacity 5 ton. the dumper co
ntainer inner dimension is 3300 x 1810 x 360 mm (a
bout 2.15 cubic meters).
The Dumper co
ntainer side plate thickness is 3 mm, bottom plate thickness is 4 mm.
| Vehicle name | Forland dump truck |
| Manufacturer | Hubei Jiangnan Special Automobile Co.,Ltd |
| Cabin | Single row, 2 seats, power steering, optional air conditioner |
| Wheel base | 3360mm(right hand drive) |
| Overall dimension (L*W*H)(mm) | 6030 x 2000 x 2100 |
| Dump body inner dimension (L*W*H)(mm) | 4250 x 1900 x 360 |
| GVW | 6010 kg |
| Curb weight | 3500 kg |
| Rated load capacity | 2380 kg |
| Engine | Engine model | 4DW90-73 |
| Rated power | 58 kw / 73 ps |
| Rated power | 2170 ml |
| Emission standard | Euro 2 |
| Type | Diesel engine, vertical, in-line, water-cooling, four-stroke, supercharged intercooler |
| Gear box | 5 speed forward, 1 speed reverse, manual |
| Front axle load capacity | 2 ton |
| Rear axle load capacity | 4 ton |
| Tire type | 6.50-16 nylon tire |
| Tire number | 6pcs + 1 spare tire |
| Transmission | 5 speed forward, 1 speed reverse, manual |
| Wheel track (F/R) | 1530/1485 |
| Leaf spring number | 9/11+8 |
| Fuel tank volume | 80L |
| Battery rated voltage | 12V |
| Thickness | Bottom 4mm, side plate 3mm |
| Lifting type | Middle lifting, 2 x 110Фhydraulic cylinder |

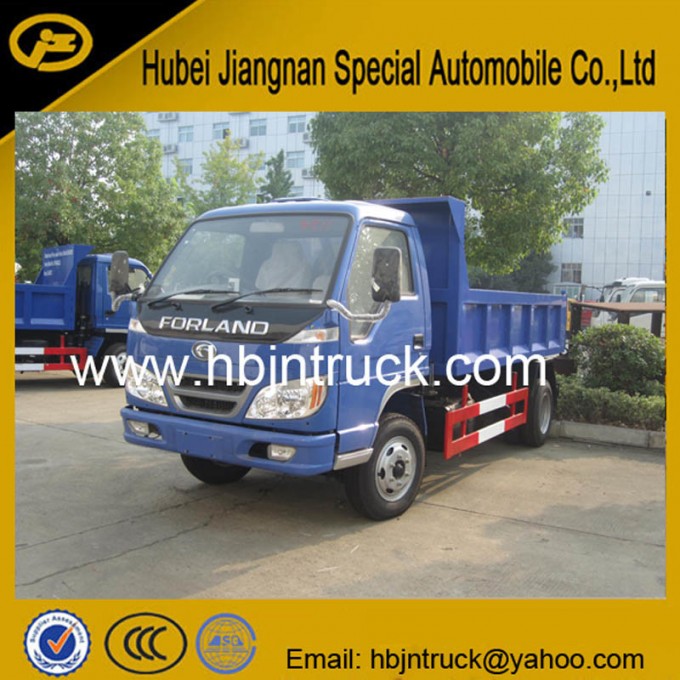

Product Image
