Detailed Description
Isuzu NKR chassis model
Isuzu 4HK1-TCG40 engine (120hp), euro 4 emission.
Isuzu MSB transmission, manual
USA Carrier refrigerated unit.
| Vehicle name | Isuzu Refrigerated Truck |
| Manufacturer | Hubei Jiangnan Special Automobile Co., Ltd |
| Chassis model | QL |
| Chassis brand | Isuzu 600P series |
| Cabin | Single row, 2 seats, air conditioner, radio |
| Overall dimension (L*W*H)(mm) | 5995x1930x2815 |
| Wheel base | 3360 mm |
| Drive type | 4x2, left hand drive |
| GVW | 7300 kg |
| Curb weight | 3210 kg |
| Rated payload weight | 3960 kg |
| Engine | Engine model | 4KH1-TCG40 |
| Engine make | Isuzu |
| Rated power | 88kw / 120 hp |
| Max torque | 280N.m |
| Displacement | 2999ml |
| Emission standard | Euro 4, high pssure common rail |
| Type | Diesel engine, 4-cylinders in line, supercharged cooling |
| Brake | Oil brake |
| Gear box | Model | Isuzu brand, MSB |
| type | Manual, 5 speed forward, 1 speed reverse |
| Tire type | 7.00-15, 6 pcs |
| Axle load | Front axle | 2-2.2 ton |
| Rear axle | 3-4.8ton |
| Wheel track (F/R) | 1015/1525 |
| Leaf spring number | 8/6+5 |
| Suspension (F/R) | 1015/1620 |
| Freezer box inner dimension (L*W*H) | 4050x1700X1600 mm |
| Cooler unit | USA Carrier |
| Temperature | -18°~0° |
| Door | rear back |
| Freezer box materials | The refrigerated truck bodies is made of GRP & PU foam with full closed structure that the GRP (Glass reinforced plastic fiber ) outside, and the PU foam in side the core, thickness 10mm |

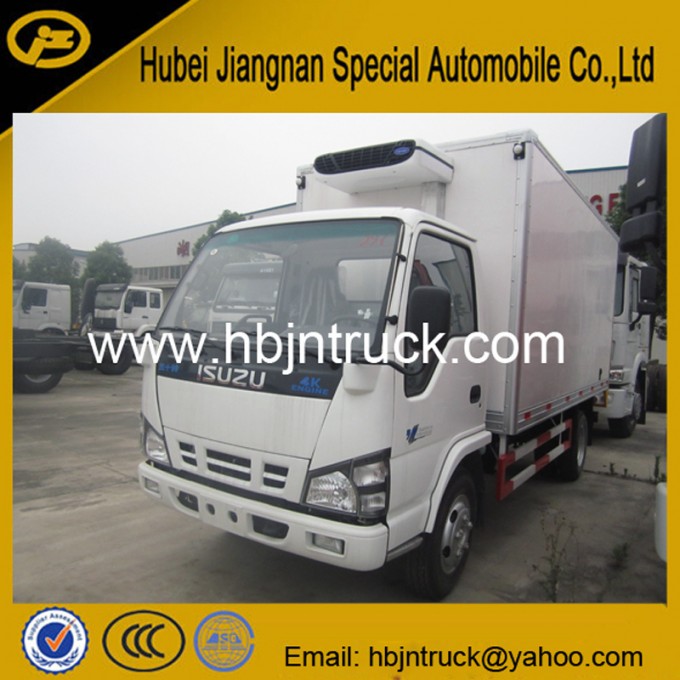

Product Image
