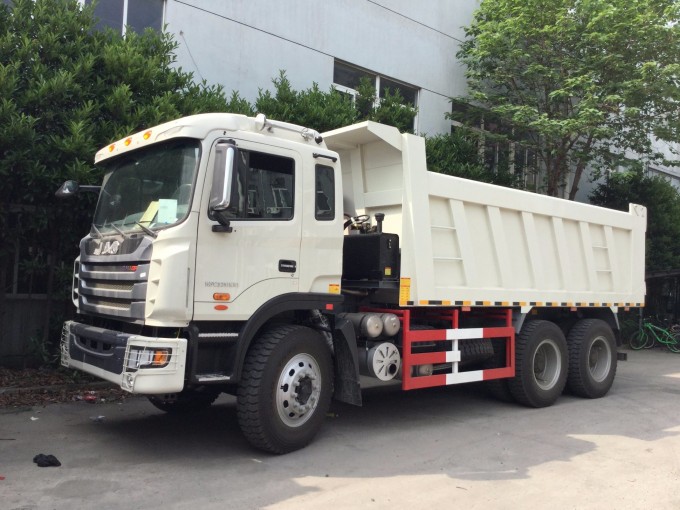

JAC 6X4 Hfc3253 30t Dump Truck / Tipper Truck

JAC Heavy Duty Truck
Excellent Value, the New Epoch of Chinese Heavy Truck
JAC heavy-duty truck integrates global advanced technology. According to the different
markets, we innovate and optimize our products endlessly and continue to enrich our
lineup to satisfy various road conditions and our costumers' demands, enabling JAC
heavy truck to become a high-end heavy truck in the international market.
Safety
The white body shell is designed in accordance with European safety standards. The energy absorption zone structure increases the anti-collision capability, thus guaranteeing passive safety;
Highly reliable
All of the chassis components have undergone CAE finite element analysis to ensure the chassis strength. The strong chassis ensures security under high loading and fast speed working conditions;
Impssive Fuel Efficiency and Environmental Performance
JAC heavy-duty trucking customers have found that they offer impssive fuel economy. Depending on load, road and driving style, it may be the best choice. Aerodynamic design feature, streamlined shape and curved surface contribute to less air drag and better fuel economy.
Local Modification for All Kinds of Environments and Temperatures
For maintaining outstanding performance in different environments and temperatures, JAC heavy trucks have been modified for alpine areas, high-temperature regions, low-temperature regions, and desert areas.
A complete range to choose from
JAC heavy-duty trucks are available with a variety of outputs and with Euro 4, Euro 3 and Euro 2 emission levels. This makes it possible for you to enjoy the unique styling, the special feeling and all the benefits of JAC heavy -duty trucks with an engine that fits your needs exactly.

Model		HFC3251KR1K3	HFC3253KR1
Drive mode		6*4 dumper	6*4 dumper
Engine	Model	WD615.38	ISM380E 20
	Emission levels	E-II	E-II
	Max output power(Kw/rpm)	280/2400	280/1900
	Max torque(N·m/rpm)	1460/1400-1800	1825/1200
Transmission	Model	10JSD160T+QH50 10 forward & 2 reverse	ZF 16S 1955 16 forward & 2 reverse
Rear axle: ratio/loading capacity		Steyr technology 5.73/4.8; 16 tons	Steyr technology 4.8; 16 tons
Clutch		Single plate,dry,diaphragm spring	Single plate,dry,diaphragm spring,SACHS
Braking system		Dual-circuit air brake, with exhaust assisted braking	Dual-circuit air brake, with exhaust assisted braking
Main Parameter	Overall dimension(mm)	8265/8355×2495 ×3500	8960×2560×3330
	Rear cargo box dimension/	5400/5600×2300 ×1500	5960×2360×1350
	Wheelbase(mm)	3690+1350	4350+1350
	GVW/GCW(Kg)	40000	39400
	Rated load (kg)	26650/26420	25000
Tire		11.00R20,12.00R20,12R22.5	12.00R20,12R22.5
