Transport Heavy Equipment Hydraulic Rotary Axles Modular

1. Advantage:
For the transportation of large objects like transformers;
Axles to be hydraulic rotary kind;
Power station available installed on the trailer;
Design as per your requirement and your work place conditions;
MOQ = 1 unit.

2. Specifications

250Tons 4+6 Hydraulic Gooseneck Modular Semi Trailer
Tech Parameter- Per 2 Rows Line-Axle Modular
Centerline Tare Weight	3.5T
Rated Capacity	45T
Suspension	Stroke hydraulic + / - 300 mm
Basic module width	3.000 mm
Angle of rotationaxis	±55°
The control system	Integrated into the central frame
Air cylinders
Oil tank
Hydraulic system	Safety valves
Main beam Material	AH60,40Cr
Main Parts	Combinable heavy module 4 line-axles	Combinable heavy module 6 line-axles
Outside Dimension	6000mm*3000mm*1750+300mm	9000mm*3000*+300mm
Axles / Tires	8 axles / 32 Tires	12 axles / 48 Tires
Total Dimension	15000mm+3700mm+700mm *3000mm*1750+300mm
Tire Size	215/75 R 17,5
Wheelbase	1500mm
Modules Connections	Side-battle for different combinations. Axle units mounted on the frame by bolting
Equipment for Modular Combinations
Diesel Power Plant	22 KW
Hydraulic Pump	30 1/ min
Standard Shaft	3000mm long, flexible coupling ring, diameter 50 mm
Operating head	2 file combination
Wireless Remote Control	Handheld operator panel / Transmitter - 1 piece
Hydraulic bolted connector	3 pcs
Braking system	Dual line braking system with automatic air brake and ABS
Operating panel	1 pc with leveling system
Alarm panel	2 pairs
Flashing light	2 pcs
Tool Box	1 set of standard tools
Hydraulic Gooseneck
Rated capacity	35T
Pin	3.5-inch swivel pin
Control system	Integrated dual-control system
Connectors	Hydraulic and pneumatic
Taps	3 - 4 pcs
Other capacity with other dimensions optional

3. Procession of production

4. Certificates of our trailers

5. Shipping reference




6. Mark:

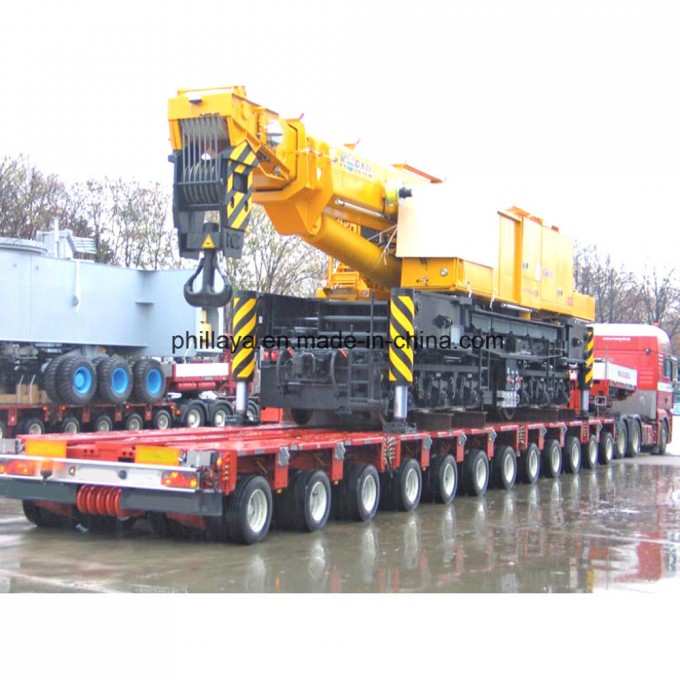

This series modular lowbed semi trailers are mainly used in heavy duty or non-dismantles objects transportation, widely used in construction site and logistic companies.
The capacity varies widely from 20 tons per modular to 300 tons by connection of needed modular pieces. We can manufacture it according to your needed weight and dimension.
The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
The suspension we used are rigid suspension on line-axle trailers for heavy duty.
The modular function and dimension is similar with the famous brand, Goldhofer.
The Chassis are made of high tensil steel.
