Detailed Description
Qingdao Phillaya Internatio
nal Trading C.,Ltd
Trailer axle features
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance pmium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
| Model | Max capacity(KG) | Axle Beam(mm) | Total Length LP(mm) | Tractor TR(mm) | Brake(mm) | CenterDistance
of Chamber GM(mm) |
| PLY1010NF | 10000 | 127 | 2392 | 2050 | Φ420*180 | 507 |
| PLY1201NF | 12000 | 150 | 2158 | 1840 | Φ420*180 | 420 |
| PLY1203NF | 12000 | 150 | 2158 | 1840 | Φ420*200 | 375 |
| PLY1213NF | 12000 | 150 | 2188 | 1840 | Φ420*200 | 408 |
| PLY1216NF | 12000 | 150 | 2218 | 1900 | Φ420*220 | 427 |
| PLY1217NF | 12000 | 150 | 2158 | 1840 | Φ420*180 | 420 |
| PLY1218NF | 12000 | 150 | 2146 | 1840 | Φ420*180 | 427 |
| PLY1404NF | 14000 | 150 | 2198 | 1840 | Φ420*200 | 372 |
| PLY1602NF | 16000 | 150 | 2196 | 1870 | Φ420*200 | 280 |
| PLY1604NF | 16000 | 150 | 2262 | 1870 | Φ420*200 | 269 |
| PLY1604NFb | 16000 | 150 | 2262 | 1840 | Φ420*200 | 269 |
| PLY1609NF | 16000 | 150 | 2300 | 1870 | Φ420*220 | 293 |
| PLY1801NF | 18000 | 150 | 2296 | 1870 | Φ420*220 | 279 |
| PLY1806NF | 18000 | 150 | 2296 | 1870 | Φ420*220 | 293 |
Noted:WE ALSO CAN MAKE OTHER AXLES ACCORDING TO YOUR DRAWING
1. Material: Steel
2. Drum, Brake Lining 420
x180mm, Track TR 1840mm
3. Axle Beam you can choose: 150*150, 127*127, Φ127
4. Product type: American, Germany and Europe type
5. Max. Capacity you can choose: 12T, 13T, 14T, 15T, 16T
6. Stud: 10*M20*1.5
CONTACT:Branda Hu --- Exporting Manager Of Phil-la-ya Vehicle.
Mobile:+8615908932191
Office Tel:+86 532 83957810
Web:www.Phillaya.com

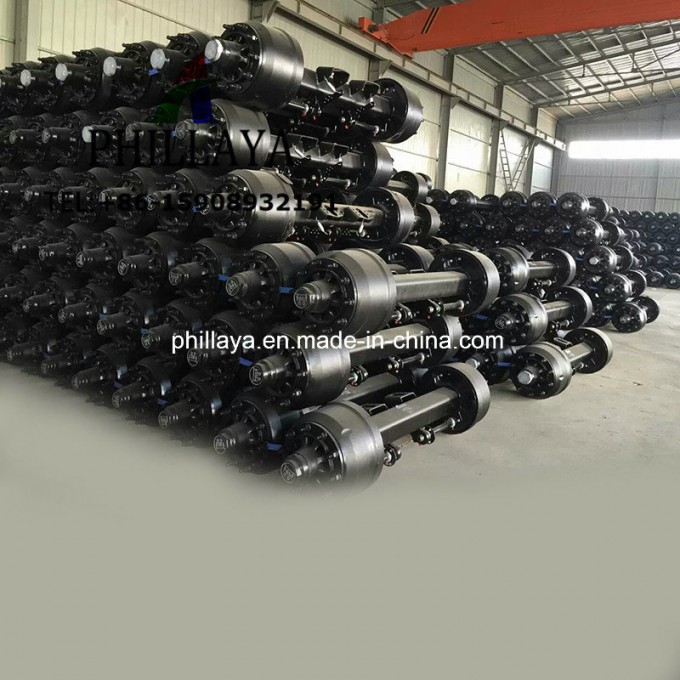

Product Image
