Detailed Description
25 ton 375HP Dump Truck NXG3251D3KC
1. Overall size: 8115*2495*3380mm
2. Gross vehicle weight: 24995kg
3.375HP
Dimension |
NXG3251D3KC |
|---|
| Overall size (length×width×height) | 8115×2495×3380mm |
| Cargobody size (length×width×height) | 5400×2300×1400mm |
| Wheelbase | 3650+1350mm |
| Wheel tread (Front/Rear) | 2057/1848mm |
| Min. ground clearance | 290mm |
| Kerb mass | 12400kg |
| Gross vehicle weight | 24995kg |
| Rated loading capacity | 12400kg |
| Max. travel speed | 77km/h |
| Min. turning diameter | 16m |
| Max. gradeability | 30% |
| Approach angle | 26° |
| Departure angle | 20° |
| Fuel consumption | 29(L/100 km) |
| Engine | water-cooling, turbocharging and intercooling, Euro III emission standard, direct injection diesel |
| Rated output at 1,900rpm | 375HP |
| Max. torque at 1200r/pm | 1500N.m |
| Rated Fuel consumption | 196g/(KW.h) |
| Driver's Cab | tiltable cab , with air-conditioner & ventilation, adjustable driver's seat ,single sleeper |
| Transmission Type | 12JSD180TA
12 forward/1 reverse |
| Steering | hydraulic steering with power assistance |
| Front axle | 7.5T Elliot type, I beam section |
| Rear axle | 26T
Ratio: 5.73 |
| Clutch | Single-plate dry coil-spring clutch, diameter 430, hydraulically operating with air assistance |
| Service brake | dual circuit compssed air brake |
| Parking brake | spring energy operating on rear wheels |
| Auxiliary brake | engine exhaust brake |
| Rims | 8.50V-20 |
| Tyres | 12.00R-20 |
| Operating voltage | 24V |
| Alternator | 70A/28V |
| Batteries | 6-QAW-165 |
| Capacity | 240 L |

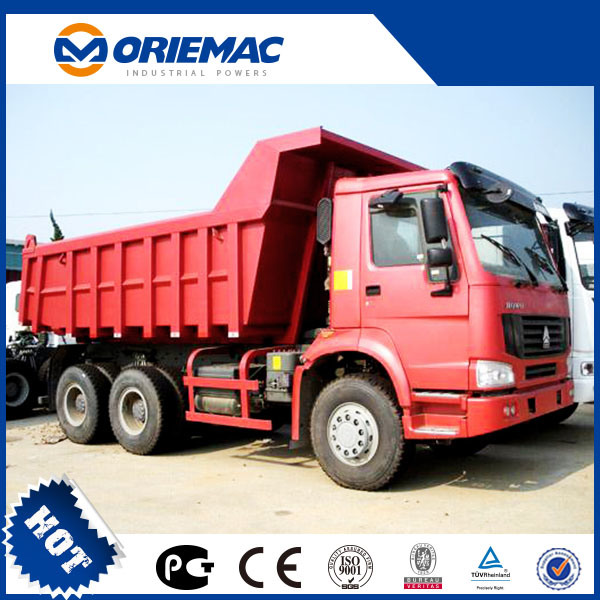

Product Image
