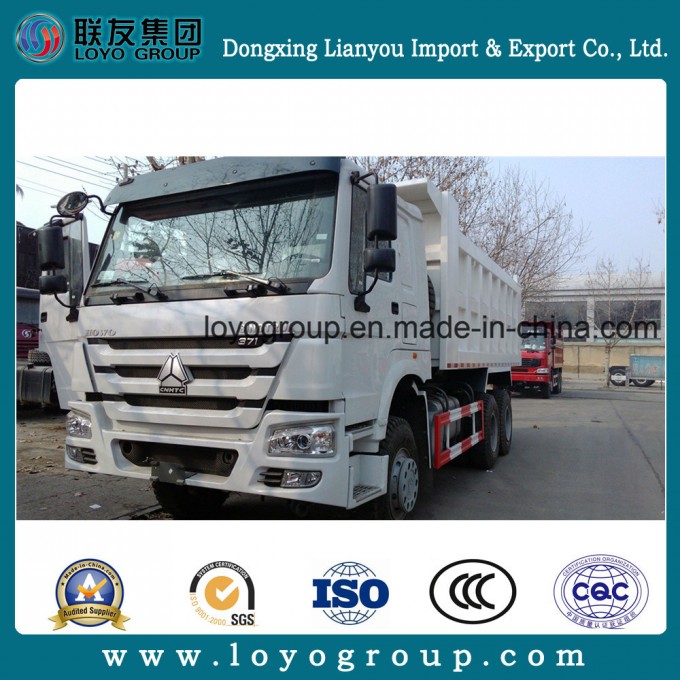

| SINOTRUK HOWO 6X4 DumpTruck |
| GVW25000kg | Driving Type 6x4 |
| Model | ZZ3257N3847B |
| Engine | Model | WD615.47 |
| Horsepower | 371 |
| Maximum output Kw/r/min | 273/2200 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard |
| Cab | SINOTRUK HW70 standard cab, no bunk, left hand driving , with air conditoner, new type seat,adjustable steering wheel,EURO new type heating & ventilating system, |
| German VDO instruments,safety belts, exterior sun visor,stereo radio/MP3 player |
| Option:color; Wind guide cover |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Transmission | SINOTRUKHW19710transmission ,10 forward and 2 reverse |
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles |
| Steering | German ZF8118 Steering Gear Box ,hydraulic steering with power assistance |
| Rear Axles | SINOTRUK HC16 central reduction+hub reduction, cast axle housing |
|
| Brake System | Service brake:dual circuit compssed air brake |
| Parking brake (emergency brake):spring energy,compssed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Tyres | Tyres:12.00R20 with 1 Spare tire |
| Electrics | Operating voltage:24V,negative grounded |
| Starter:24V,7.5 Kw |
| Alternator:3-phase,28V,1500 W |
| Batteries:2x12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-300L fuel tank |
| Item | 300L water tank with water sprayer at the brake |
| front under chassis guard |
|
|
| Dimensions | Overall length x width x height8345×2496×3170mm) |
| Wheel base3825+1350(mm) |
| Dump body/Carriage | dimension(mm) | 5500x2300x1500 |
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm |
| Hydraulic Lift of Carriage | middleventrallifting |
| Weight (kg) | Kerb weight12350 |
| Gross vehicle weight25000 |
| Performance | Maximum drving speed (km/h)75 |
|
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
| be suitable for long distance transportation of ocean and inland. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
