Detailed Description

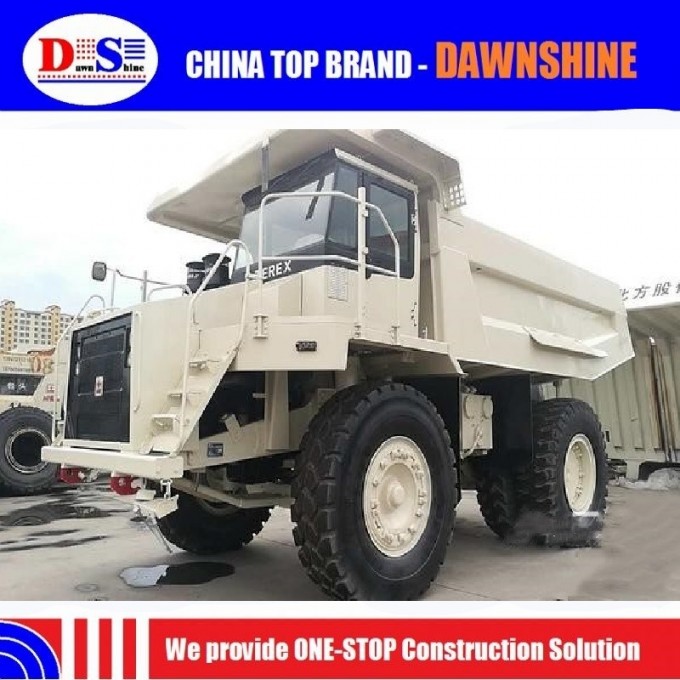

Terex TR100 100 Ton Coal Mining Dump/Tipper Truck
TECHNICAL PARAMETER
| Type | TR100 |
| Capacity Tonnage | Carrying Capacity (t) | 100 |
| Self Weight (t) | 69 |
| Overall Dimension | Long (mm) | 10820 |
| Wide (mm) | 5150 |
| High (mm) | 4850 |
| Engine | Type | Commins KTA38-C |
| Power(KW) | 783 |
| Transmission | Type | Allison H8610AR CEC2 |
| Gear ratio | 4.24~0.73 |
| Number of stalls (forward /reverse) | 42887 |
| Max speed (km/h) | 47.6 |
| Brake System | Format | Full hydraulic compssion |
| (Front wheel dry disk,Rear wheel wet disk) |
| Driving axle | Type | Heavy load type,fully floating axle |
| Total Reduction Ratio | 29.70:1(standard) |
| 22.68:1(optional) |
| Steering system | Maximum turning angle (°) | 39° |
| Lifting system | Lift time (s) | 16.3 |
| Drop-out time(s) | 18 |
| Suspension system | Form | Oil and nitrogen mixed oil-gas suspension |
| Tyre | 27.00-49 |
| Carriage box volume capacity | Paper-cover (m³) | 41.6 |
| 2:1 Stow (m³) | 57 |
DETAIL PICTURES
RELATED PRODUCT
| Specifications for TEREX TR50 |
| Model | TEREX TR50 |
| Loading capacity | 45-50Ton |
| Engine model | Commins QSX15-C |
| Engine horsepower | 525HP/392KW |
| Transmmison | Allison H5620AR |
| Overall Dimension | 8875mmx4240mmx4245mm |
| Tires | 21.00-35 |
| Bucket capacity (full loading) | 27.5 cubic |
| Bucket capacity(paperback) | 21.5 cubic |
| Lifting time | 11s |
| Down time | 9s |
| Weight | 33.98T |
