Detailed Description
All of the chassis compo
nents have undergone CAE finite element analysis to ensure the chassis strength. The strong chassis ensures security under high loading and fast speed working conditions
| Model | HFC3252KR1K3 | HFC3311P1K6E39F | HFC3253KR1 | HFC3310KR1 |
| Drive mode | 6*4 | 6*4 | 6*4 | 8*4 |
| Engine | Model | WP10.380E32 | WP12.400E40 | WP10.380E32 | WD12.375 |
| Emission levels | E-III | E-IV | EE-III | E-II |
| Max output power(hp/rpm) | 380/2200 | 400/1900 | 380/2200 | 375/2200 |
| Max torque(N·m/rpm) | 1460/1200-1600 | 1920/1000-1400 | 1460/1200-1600 | 1500/1300-1600 |
| Transmission | Model | 10JSD160T+QH50 | 12JSD200TA+QH50 | 10JSD160T+QH50 | 10JSD160T+QH50 |
| Rear axle;ratio | Steyr;5.73 | Steyr;4.8,5.73 | Steyr;5.73/4.8 | Steyr;4.8/4.38 |
| Clutch | Single, dry plate, diaphragm spring | Single, dry plate, diaphragm spring | Single, dry plate, diaphragm spring | Single, dry plate, screw spring ,power assist,VALEO |
| Braking system | Dual-circuit air brake | Dual-circuit air brake | Dual-circuit air brake,WABCO system | Dual-circuit air brake,WABCO system |
| Main Parameter | Overall dimension(L×W×H) (mm) | 7612×2495×3150 | 7939×2495×3170 | 8258×2495×3192 | 9005×2495×3150 |
| Wheelbase(mm) | 3690+1350 | 3900+1350 | 4250+1450 | 1800+3200+1350 |
| GVW/GCW(Kg) | 50000 | 33000 | 40000 | 35000 |
| Rated load (kg) | 35000 | 18330 | 28200 | 20500 |
| Tire | 12.00R20,12R22.5 18PR | 12.00R20-18PR,12R22.5,13R22.5,315/80R22.5 | 12.00R24 | 12R22.5 |

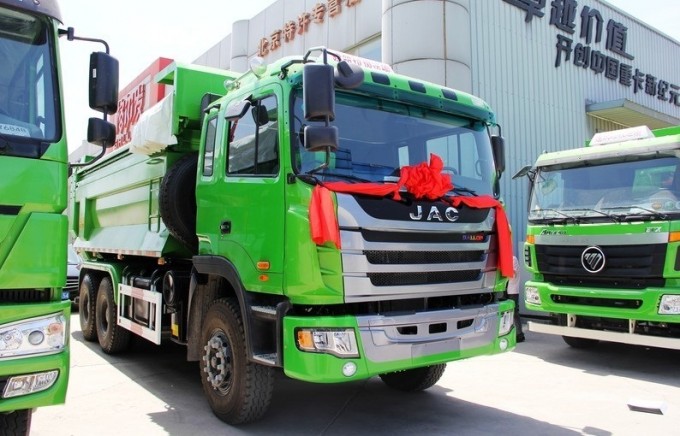

Product Image
