MPO Truck Optical Fiber Jumper

With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our websitewww.koc.com.cn.In case of need, please do not hesitate in contacting us.

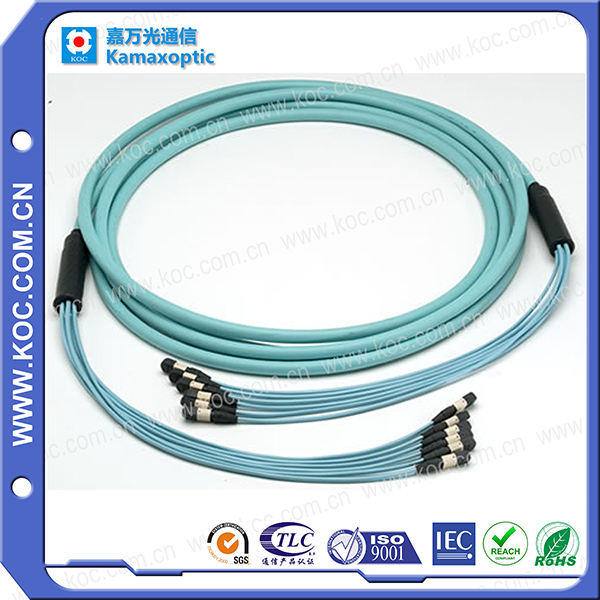

MPO Optical Patch-Cord
KOC MPO solution is designed for high-density fberconnections and high-speed data center cabling.We provide an economic highly reliable solution foryour fber network systems.
APPLICATIONS:- CATV, and Multimedia- Gigabit Ethernet- Industrial and medical- Active device interface- Premise installations- Interconnection for O/E modules- Data processing networks- Telecommunication networks- Optical switch interframe connection- Asynchronous Transmission Mode (ATM)
FEATURES:- IEC 61754-7 Compliant- Compact design, up to 24 fiber ribbon- Polishing does not require diamond film- Precision molded MT ferrule- Telcordia GR-1435-CORE compliant- Low insertion loss and back reflection loss- High pcision guide pins for exact alignment

SPECIFICATIONS

	Single mode	Multimode
Insertion Loss	Low Los ≤ 0.35dB	LowLos≤ 0.35dB
	Standard Loss≤ 0.7dB	Standard Loss≤ 0.5dB
Return Loss	≥ 55dB	≥ 30dB
Durability	<0.3dB typical change, 200 matings	-
Operating Temperature	-40 to +85ºC	-40 to +85ºC

Note: The price range is for MPO(female)-MPO(female) Singlemode 12 core mini round cable 1m.
