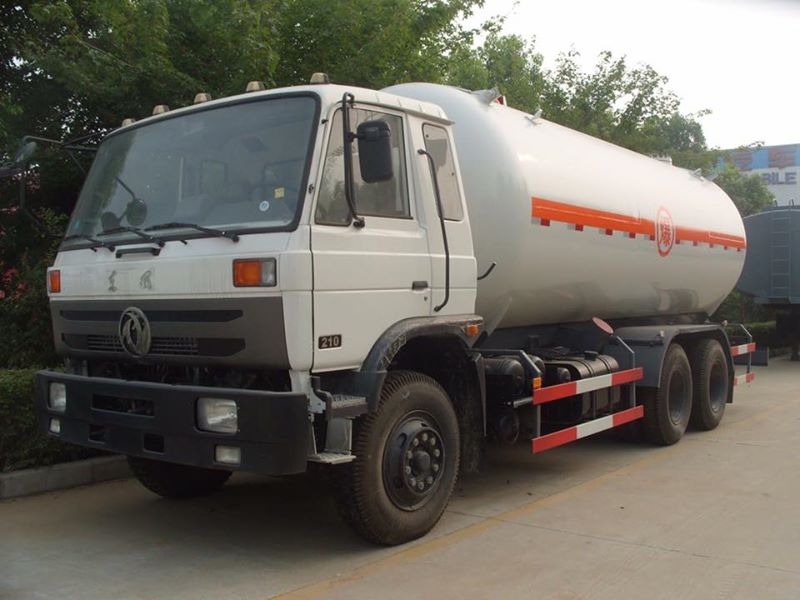

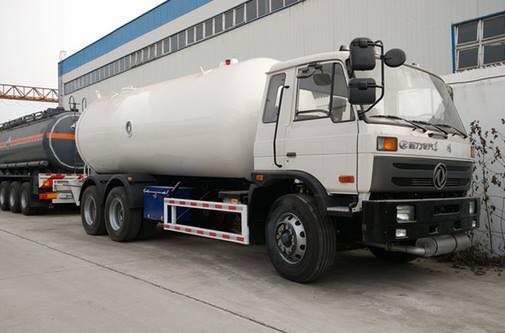

Fully Pressurized DFAC 6x4 16cbm LPG Propane Delivery Road Truck
Technical parameter
6x4 Dongfeng 16cbm LPG Gas tank truck filling machine | |||||
Main Data | Model No. | CLW5190GYY3 | Axles | 3 | |
G.V.W(Kg) | 19490 | Tank volume(m3) | 16 | ||
Curb weight(Kg) | 8795 | Overall dimension (mm) | 11000×2490×3550,3200 | ||
Rated weight(Kg) | 10500 | Axles Load(Kg) | 5400/5500/8590 | ||
Emission Standard | Euro III | Front/rear suspension (mm) | 1430/2770 | ||
Approach/departure angle (°) | 18/10 | Front/rear Tread(mm) | 1700+1500 | ||
Wheelbase(mm) | 1700+5100 | Max speed(Km/h) | 90 | ||
Leaf of springs | 10/10/10+8,10/10/11+8 | Tire | 9.00-20,9.00R20,10.00-20,10.00R20 | ||
Chassis mode | DFL1190BX | Fuel type | Diesel | ||
Engine | Type | Brand | Displacement(ML) | Rated Power(Kw) | |
ISDe180 30/ISDe185 30 | Cummins | 4500 / 6700 | 132 / 136 | ||
ISDe210 30 | Cummins | 6700 | 155 | ||
EQH180-30 /EQH180-33 | Dongfeng | 4752 | 132 | ||
YC6J200-33 | Yuchai | 6494 | 147 | ||
Gearbox | 5 Forwards gear & 1 reverse gear | Brakes | dual circuit compressed air brake | ||
LPG tank | Effective volumn:15.75cbm, tank size :8100×2200×1300mm. Floor clearance: 3200mm , Materials:Q235 carbon steel . Rear protective section size:100x60x50mm | ||||
about us
We CLW HeavyIndustryCo.,Ltd are a professionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.We also providespare partsfor the products separately.
All of our products comply can reach theinternational quality standardsand are greatly appreciated in a variety of markets around the world.
1.CLWHeavyIndustryCo.,Ltd, which was appointed bythe Development and Reform Committeeof China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer having nearly15yearswholesalerexperiencein producingtruck.
2.Our company hasindependent export rightand has amount of clients overseas includingAfrica, North America, Middle East, Australiaand so on. The exportturnoverhas reached25million dollars.
3.Our company hasgood after-sales service,solid technology,flawless inspectionfor our dear customers.
Our factory advantages
1. More than 15 years' experience as a manufacturer
2. Competitive price and excellent quality
3. CCC, ISO, BV, certification
4. Perfect after-sale service
5. Customized products are available
6.100 senior welder and 15 senior engineers
7.Export covering More than 50 countries and regions
Products catalog
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / lowbed trailer / van container trailer / warehouse trailer, etc. )
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
