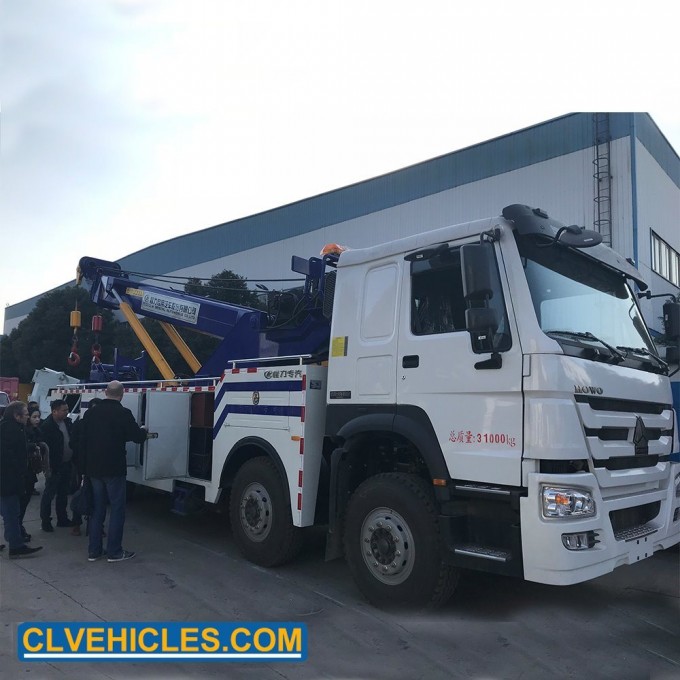

| General | Model | CLW5310TQZZ4 | |
| Overall Dimension | 11000×2500×3600 (mm) | ||
| GVW | 31000(kg) | ||
| Max Speed | 90km/h | ||
| Engine | Fuel Type | Diesel Oil | |
| Engine Model | WD615.47 /371hp | ||
| Engine Type | Four-cylinder, in-line, water cooling, supercharging, DI, diesel engine | ||
| Displacement | 9.726L | ||
| Rated Power | 273KW | ||
| Emission Standard | Euro II | ||
| Chassis | Chassis Model/ Brand | HOWO | |
| Drive Type | 8*4 Left Hand Drive/ Right hand drive | ||
| Front Axle | HF9 | ||
| Rear Axle | HC16 | ||
| Wheelbase | 1800+4600+1350mm | ||
| Transmission | Mechanical manual transmission 8 Forward Speed, 1Reverse | ||
| Steering Type | Steering Wheel with Power Steering | ||
| Clutch | Dry, diaphragm spring clutches | ||
| Tire Size/ Number | 12.00R20+1Spare Tire | ||
| Suspension Type | Leaf Spring | ||
| Number ofLeaf Spring | 11/11/12 | ||
| Braking System | Air Braking | ||
| Electric systerm | 24V | ||
| Color | Optional | ||
| Upperbody | Underlift structure | Fully retracted | 25000(kg) |
| Fully extended | 12500(kg) | ||
| Retracted length | 1900(mm) | ||
| Extended length | 3650(mm) | ||
| Working angle | -7 ~+16 (.) | ||
| Folded angle unload | -7 ~+92 (.) | ||
| Boom structure | Max. lifting capacity | 50000(kg) | |
| Extended lifting capacity (30°) | 7800(kg) | ||
| Extracted lifting capacity (30°) | 18000(kg) | ||
| Extracted boom length | 11880(mm) | ||
| Extended boom length | 5880(mm) | ||
| Max lifting height | 12300(mm) | ||
| Max. working radius | 10710(mm) | ||
| No. of arms | 3 | ||
| Working angle | 0~60(.) | ||
| Rotating angle | 720(.) | ||
| Winch | Quantity | 2 | |
| Max. pulling power | 20000kg *2 | ||
| Length of steel cable | 60m *2 | ||
| Diameter of the cable | Φ20 | ||
| Min. speed of winch | 5 (m/min) | ||
| Hydraulic Legs | Front leg type | H | |
| Rear leg type | L | ||
| Span of front legs | 6600(mm) | ||
| Span of rear legs | 4080(mm) | ||
| Span between front and rear legs | 5550(mm) | ||
| Equipped | Four sets of steel fork, aset of tow-fork sleeve, aset of steel plate hanging lug fork, aset of ABS device. Along warning light. Auxiliary light set, auxiliary pipe assembly, | ||
| Servane Lee Sales department(7/24/365) CHENGLI SPECIAL AUTOMOBILE CO., LTD Q/W: 174913853 S: 13437131583 Web:clvehicles.en.made-in-china.com clvehicles.en.made-in-china.com Factory Add: South Suburb, Chengli Automobile Industry Park, Suizhou City, Hubei Province, China |
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
