| Truck Specification | |||
| Truckmodel | CL5310TQZZ3 | ||
| Cab | Sinotruck HOWO HW76 cabin ,, with power steering., with a/c | ||
| Driving Type | 8*4 | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 10685*2500*3460 | ||
| Mass in working order(kg) | 19525 | ||
| GVW(kg) | 31000 | ||
| Wheelbase(mm) | 1800+4600+1350 | ||
| F/R track base(mm) | 2022/1830 | ||
| F/R overhang(mm) | 1500/880 | ||
| Approach/Departure Angel | 16/10 | ||
| Tire | 12.00R20(10+1) | ||
| Clutch | Single plate friction type with air booster system | ||
| Steering | Power assisted steering. | ||
| Gear box | Manual Synchromesh HW19710, 10 SPEED FORWARD +2REVERSE | ||
| Bridge | Front axle | HF9 | |
| Rear axle | HC16 | ||
| Enging | Model | WD615.47 | |
| Type | cylinder water cooled diesel engine to be fitted with diesel particulate filter in-built. | ||
| Exhaust(ml) | 9726 | ||
| Max output power/rotate speed (hp /rpm ) | 371/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1500/1100-1600 | ||
| Brakingsystem | Service Brake | Air over hydraulic dual circuit system | |
| Park Brake | Mechanical, internal expanding acting on transfer output shaf | ||
| Eletric system | 24v | ||
| Upper-Bodyspecification | |||

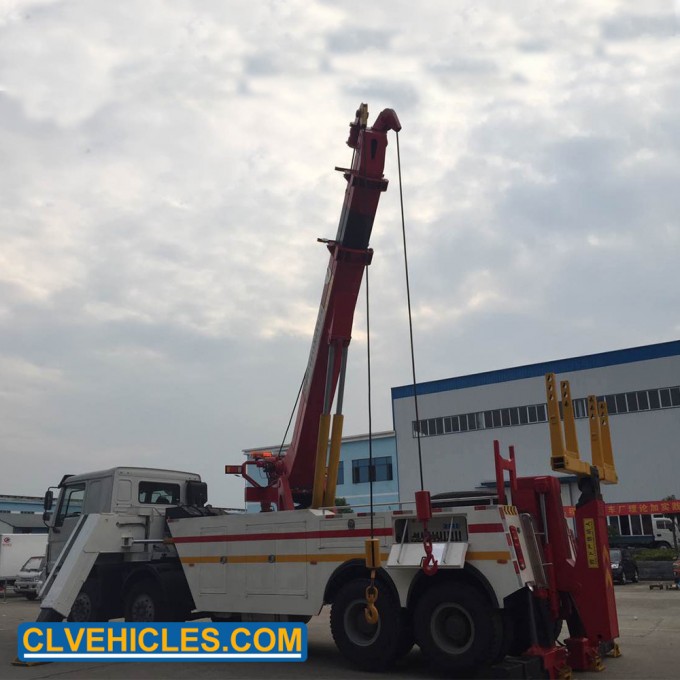

| Wrecker Type | Hydraulic operated 3telescope boom | ||
| Boom structure | Retracted -30,000 kg | ||
| Extended -6,500 kg | |||
| Lifting height:12230mm | |||
| power Elevation | |||
| Power Extension | |||
| Dual Hydraulic Pump | |||
| 360 degree sheave heads | |||
| Hydraulic Under Lift at Rear | Fully retracted 20000 kg | ||
| Fully extended 125000 kg | |||
| Towing capacity 30000kgs | |||
| Under Lift- 7° -16 | |||
| Hydraulic Outriggers | 4 in-built with power elevation& extension. | ||
| Hydraulic winches &steel cables | Dual, 15,000 kg x2-Planetary type Cable Type: Steel cable60m length ,20mm diameter, | ||
| Power take off | PTO drive from transmission | ||
| Wrecker Operation | Panel board comprising joysticks and hydraulic meters installed in asuitable place out of crew cabin. | ||
| Hydraulic System | Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves &control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. | ||
| Safety Device | |||
| Auto brakefor winch | Automatic safe brake in case winch /Engine fail. | ||
| Hydraulic valves | Necessary hydraulic pressure relief &lock valve/ valves | ||
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
