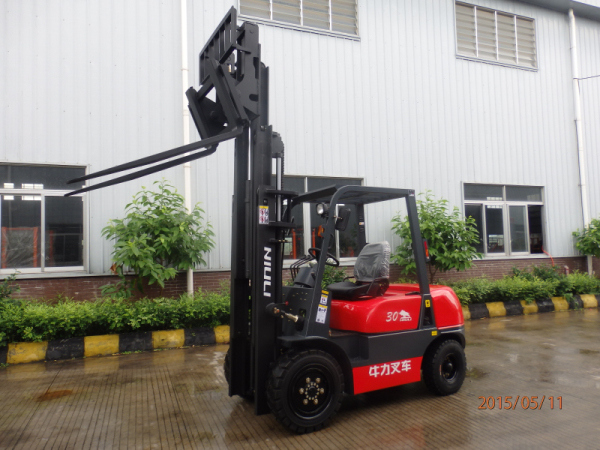

Niuliforklift with Isuzu C240 Engine

Features:

*Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the ooperator feel more confortable during operation.

*This forklift truck is designed with high definintion liquid crystal display device which not only provides convenience for operator to undersand the working condition of truck but also broadens the visual field of operator.

*This diesel forklift truck can be designed with two stage free lifting mast or three stage mast, luxurious and closed driving room, solid tire, sideshifter, roll clamps, clamp holder, and nonstandard forks ect, to meet your different needs.

Model						CPC30/CPCD30		CPC35/CPD35
2	Power Type						Diesel/GAS
3	Rated capacity					Kg	3000		3500
4	Load center					mm	500		500
Charactertic&Dimension	5	Lifting height				H1	mm	3000		3000
	6	Fork size				a×b×c	mm	1070*122*40		1070*122*40
	7		Mast Tilt Angle			F/R	Deg	6°/12°		6°/12°
	8		Front Overhang(Wheel center to fork face)				mm	500		500
	9	Ground Clearance(Bottom Of Mast)				m1	mm	126		126
	10	Overall Dimension	Overall length(with/without fork)			L1/L2	mm	3790/2700		3790/2700
	11		Overall width			B	mm	1230		1230
	12		Mast lowered height			H3	mm	2105		2105
	13		MastExtended height(with backrest)			H2	mm	4110		4110
	14		Overhead guard height			H4	mm	2140		2140
	15	Turning Radius(outside)				Wa	mm	2415		2415
	16	Min. intersecting aisle				Ra	mm	2500		2500
Performance	17	Speed	Travel(Full/Empty load)				km/h	18/19		18/19
	18		Lifting(Full/Empty load)				mm/s	460/540		530/540
	19	Max.Gradeability					%	20		20
Chassis	20	Tire	Front					28x9-15-12PR		28x9-15-12PR
	21		Rear					6.50-10-10PR		6.50-10-10PR
	22	Wheelbase				L4	mm	1650		1650
	23	Self Weight					kg	4280		4500
Power&Transmission	24	Battery	Voltage/Capacity				V/Ah	12/120		12/120
	25	Engine	Model					C240	C490BPG	QC495G	4JG2
	26		Manufacturer					ISUZU	XinChang	Quanchai	ISUZU
	27		Rated output/r.p.m				kW/rpm	34.3/2500	34.3/2500	42/2650	44/2500
	28		Rated torque/r.p.m				Nm/rpm	137.7/1800	160/1800-2000	174/1980	186/1600-1800
	29		No. of cylinder					4	4	4	4
	30		Bore x Stroke				mm	86x102	90x105	95x105	95.4X107
	31		Displacement				cc	2369	2670	2980	3059
	32		Fuel Tank capacity				L	60	60	60	60
	33	Transmission	Type					Machanical/Hydraulic		Machanical/Hydraulic
	34	Operation Pressure for Attachment					Mpa	17.5		17.5
