SHYTGER Diesel Forklift Japan Forklift ISUZU Engine


Character Of Diesel Forklift:
1). Streamlined exterior and beautiful appearance
2). The wide-view mast improves the efficiency and safety of operations
3). Scientific ergonomic designs ensure the comfort of driving
4). Buffer device for steering axle
5). Overhead intake system and overhead dual air filters
6). Integrand hood is effectual in heat insulation and noise reduction
7). LPG is optional according to customers' demands.

Technical Specification Of Diesel Forklift:

General	1	Model				FG20T/C	FG25T/C	FG30T/C	FG35T/C
	2	Power Type				Diesel /Gasoline(LPG)
	3	Rated Capacity			kg	2000	2500	3000	3500
	4	Load Centre			mm	500
Characteristic &Dimension	5	Lift Height			mm	3000
	6	Fork Size		L×W×T	mm	1070×122×40		1070×125×45	1070×125×50
	7	Mast Tilt Angle		F/R	Deg	6°/12°
	8	Front Overhang (Wheel center to fork face)			mm	450		480	485
	9	Ground Clearance (Bottom of mast)			mm	110		120
	10	Overall Dimension		Length to face of fork (Without fork)	mm	2460	2530	2660	2720
				()
	11			Overall Width	mm	1150		1225	1285
	12			Mast Lowered Height	mm	1995		2075
	13			Mast Extended Height (With backrest)()	mm	4030		4250
	14			Overhead Guard Height	mm	2120		2140
	15	Turning Radius (Outside)			mm	2170	2240	2400	2460
Performance	16	Speed		Travel (Full load)	km/h	17		18
				()
	17			Lifting (Full load)	mm/s	550		450
				()
	18	Max. Gradeability			%	27/21	23/18	20
Chassis	19	Tire		Front		7.00-12-12PR		28×9-15-12PR
	20			Rear		6.00-9-10PR		6.50-10-10PR
	21	Wheelbase			mm	1600		1700
	22	Service Weight			kg	3330	3670	4290	4690
Power &Transmission	23	Battery	Voltage/Capacity		V/Ah	12/80
	24	Engine	Model			NissanK21			4JG2 /K25
	25		Manufacture			NISSAN K21
	26		Fuel Tank Capacity		L	70
	28	Transmission	Type			T means Torque Converter, Cmeans Clutch
	29		Stage	F/R		1/1(2/2)

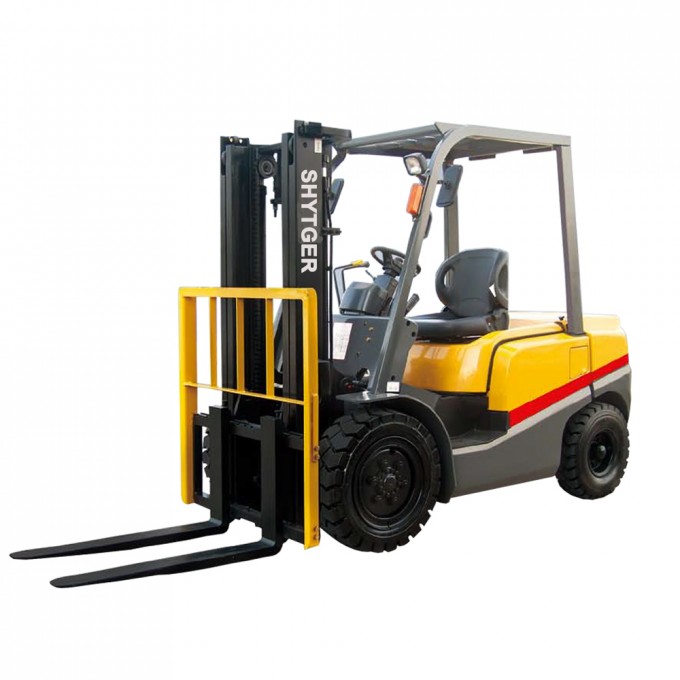

Detailed Photoes Of Diesel Forklift:

Packing Of Diesel Forklift:

Shipment &Payment:
1.T/T(100% T/T,30% deposit for production and 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.

FAQ:
1.Does the forklift engine can be changed?
Yes,Chinese or Japan brand engine are available here.

2.Does the color can be customized?
Yes,all color are available.

3.What kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
