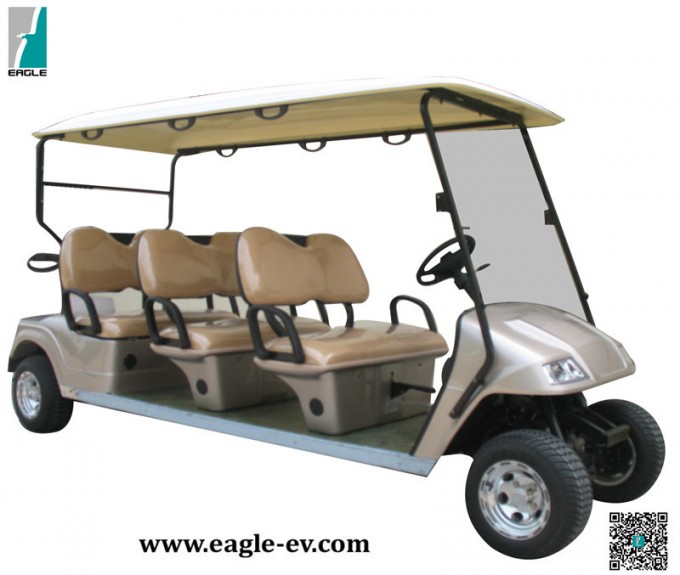

CE Approved Pure Electric 6 Seater Golf Cart

System: Multiple can choose
High quality and fashion design
Low price and Hot sale
China factory supply
Model: EG2068K

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. Was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc...It has a workshop area of 20, 000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; This can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Specifications Model EG2068K Key Components Power Source Pure Electric Electric System Both AC and DC system are available Battery Trojan battery Motor ADC motor or Chinese Motor Controller Curtis controller Charger China origin, input 110V-240V~50Hz-60Hz, Performance Passenger capacity 6 Range (loaded) based on flat road at a speed of 20km/h (km)* Up to 90 Max. speed Up to 40 Minimum turning radius (m) 6 Max. climbing ability (loaded) Up to 20% Max. movement after brake at speed of 20km/h ≤4m Max. loading weight 480kgs Dimensions Overall dimensions (mm) 3860x1180x1890 Min. ground clearance (mm) 120 Wheelbase (mm) 3200 Front wheel tread (mm) 875 Rear wheel tread (mm) 985 Body and frame frame Welded steel framework with phosphate+electro-coating treatment Body PP plastic front body + PP plastic rear body Roof Injected plastic Electric system Lighting system and horn Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm Steering and Suspension Steering system Single-stage rack and pinion steering system, automatic rocker compensating function Brake system 4-wheel hydraulic brake + hand brake Suspension system Front and rear plate spring + cylinder hydraulic shock absorber Driving mode Rear axle two stage deceleration, motor direct driving Rear axle Integrated Wheel & Tyre Alumimum wheel & 205/50-10 Tyre Options Hinged Windshield Stainless steel package Meter (available for 48V system) 2 point seat belt Formed seat&backrest vinyl Wood finish Package Inner & Side rear view mirror Solar Panel Cooler on-body charger Right hand drive system Enclosure Body Color Up to 6 kinds of standard color for option Loading Both Assembly and Disassembly are available
Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3KW, 3.8KW, 5KW, DC / AC
Controller	Curtis brand, Separately excited, imported
Performance
Passenger capacity	2
Range (loaded) (km)*	> 60--100 depends on battery setup
Max. speed (KM)	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3.5
Max. climbing ability	20%-25%
Max. loading weight	150kgs
Overall dimensions (mm)	2350x1180X1750
Body and frame
frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter, horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
