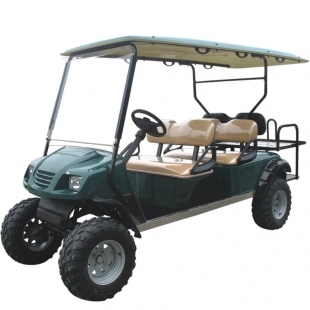

Hunting Golf Carts, Electric, 6 Seats with Foldable Seats, Eg2040asz

Utility Atv Farm Vehicle

Specifications	Model	EG2040ASZ hunting car
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Performance	Passenger capacity	6
	Range (loaded) based on flat road at aspeed of 20km/h (km)*	Up to 55
	Max.Speed	Up to 40
	Minimum turning radius (m)	4
	Max.Climbing ability (loaded)	Up to 20%
	Max.Movement after brake at speed of 20km/h	≤4m
	Max.Loading weight	450kgs
Dimensions	Overall dimensions (mm)	3500x1340x2100
	Min.Ground clearance (mm)	N/A
	Wheelbase (mm)	2440
	Front wheel tread (mm)	850
	Rear wheel tread (mm)	975
Body and frame	frame	Welded steel framework with phosphate+electro-coating treatment
	Body	PP plastic front body +PP plastic rear body
	Roof	Fiberglass
Electric system	Lighting system and horn	2 headlights, 2front turn signals, 2taillights( each combined 1brake light with 1turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Mechanical brake
	Suspension system	Front and rear plate spring +vibration absorber
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Integrated, Gear ratio12.49:1
	Wheel &Tyre	22 x11-10 tyre, 10*8 Steel wheel
Option	2point seat belt
	Formed seat&backrest vinyl
	Backrest cover in wood finish
	Dashboard in wood finish
	Steering wheel in wood finish
	Glove box door (include two locks) in wood finish (inside and outside)
	Inner rear view mirror
	Enclosure
	Hour meter
	Meter(only available for 48V system)
	22 x11-10 tyre, 10*8 Aluminum wheel
	On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A
	12x7 Steel rim, 25*8-12 tyre
Body Color	Up to 6kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc...It has aworkshop area of 20, 000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department
