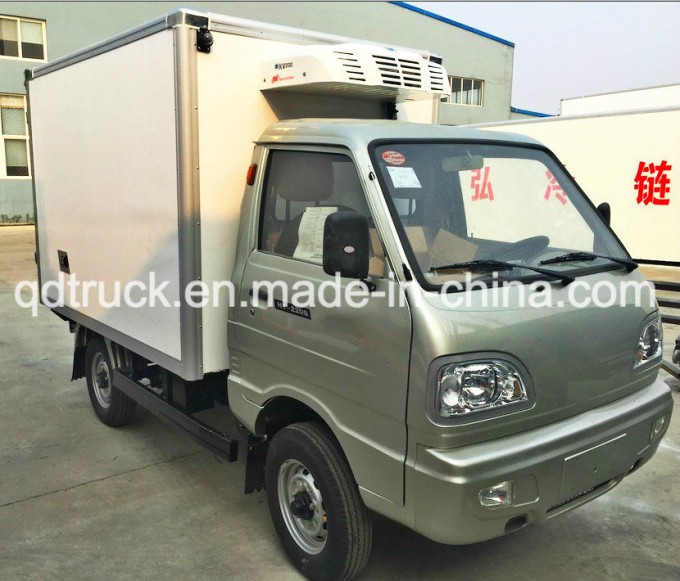

1ton Refrigerator Van Truck in Compact Mini Refrigerated Truck
Company information:
We're one professio
nal manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, co
ncrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to co
ntact us please.
| Dismensions |
| Overall length(mm) | 3800 |
| Overall width(mm) | 1565 |
| Overall height(mm) | 2550 |
| Cargo box length (mm) | 2180 |
| Cargo box width (mm) | 1400 |
| Cargo box height(mm) | 1400 |
| Thickness of Material(mm) | 83 |
| Refrigerator brand/ Model | THERMO KING/ KV-200-10 |
| Front/rear overhang(mm) | 795/805 |
| Wheel base(mm) | 2200 |
| Engine |
| Model | 3L16 |
| Type | 3-cyl. In line water cooled |
| Power(kw) | 22/3200 |
| Torque(Nm/rpm) | 73/2200 |
| Compssion ratio | 18:1 |
| Cylinder bore/Piston(mm) | 80/90 |
| Displacement(L) | 1.357 |
| Standardment | Euro I |
| Suspension |
| Front suspension | Rigid housing axle leaf spring type | 5 pieces |
| Rear suspension | Rigid housing axle leaf spring type | 4 pieces |
| Transmission |
| Model | 5+1 synchromesh transmission |
| Type | Manual Mechanical |
| Speed ratio | I: | 4.605 |
| II: | 2.693 |
| III: | 1.645 |
| IV: | 1 |
| V: | 0.839 |
| R: | 3.816 |
| Steering |
| Type | Roller type |
| Clutch |
| Type | Single plate, dry type |
| Front brake System | Two section hydraulic drum |
| Rear brake System | Two section hydraulic drum |
| Tires |
| Type | 5.50-13/4 |
| Safe |
| Safe belt | Three-point belt |
| Other specifications |
| Chassis curb weight(kg) | 1420 |
| Load capacity(kg) | 2100 |
| Max GW(kg) | 3500 |
| Mini turning diameter(m) | 10 |
| Mini ground clearance(mm) | 180 |
| Max climbing ability () | 25 |
| Max speed | 85 |
| Max Braking distance | 22 |
| Seat | 2 |
| Fuel consumption(L/100km ) | 5 |
We can supply various Truck from 1 tons to 40 tons. Lorry, Van Truck, Wagon Truck, Cargo Truck, Garbage Truck.
NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer.
