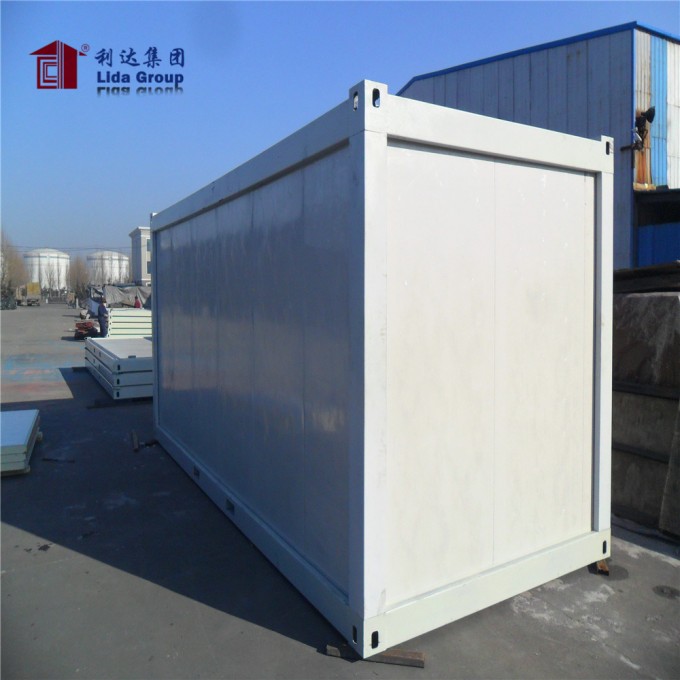

Movable Prefabricated Modular Container House

Movable Container House

Material:

The wall panel is made of light color steel sandwich panel, the light color steel sheet as the upper and the lower, the core can be used by polystyrene foam or polyurethane foam or rock wool
Performance:

Safety and reliable light steel flexible structural system

Easy to assemble and disassemble, repetitive to use
Doors, windows and indoor partition can be located at any position, stairs is outside
Light steel structure treated by anti-corrosive spray handling for long use
Strictly sealing, thermal insulation, water-, fire- and moisture-resistant
Any dimension and customized design are available

Attractive appearance:

The building overall looks attractive. The internal is covered by color steel plate. The structure and color are matched coordinately

Long service life:

The normal service life is longer than 10 years. The transportation is convenient; Assembling and disassembling are easy, suitable for cycled temporary operation. It is environment friendly and economic

Usage:

It is widely used as the temporary buildings in field for road, railway, construction projects and the temporary buildings for urban municipal projects, commerce and other projects, such as: Office, meeting room, headquarters, dormitory and shop, school, temporary hospital, car park, exhibition center, maintenance department, power house, gas station and other temporary buildings: Such as military logistics buildings, disaster relief building, sterility laboratory, isolation building, communication and power transformation buildings,

Advantages:

1) Light steel structure modular house with color steel sandwich panel
2) Good ability to assemble and disassemble for several times without damage.
3) Doors, windows and interior partitions can be flexibly fixed
4) The ceiling, floor, eaves, and color steel door are optional for customers.
5) Cost saving and transportation convenient
6) Anti-rust and normally more than 15 years using life
7) Widly used in construction site, office building, dormitory etc.

o	Item	Worker's domitory site container house
1	frame
1.1	Steel frame	3.5mm Steel profile, welding,rust removal, epoxy painting
1.2	floor support	welding,rust removal,painting
1.3	fork lift open
2	Roofing
2.1	outer steel sheet	1.2mm Steel proceed,epoxy painting
2.2	steel keel
2.3	insulation layer	120Kg/m 3
2.4	Plywood with Wooden color finish
3	Wall
3.1	sandwich panel	75mm rock wool/fiber glass sandwich panel,0.4/0.4mm
3.2	outer door	including door lockers,etc
3.3	PVC sliding window	4mm glass,with window screen
4	Floor
4.1	floor leather	including glue
4.2	plywood
4.3	insulation	120Kg/m 3
4.4	floor bottom board
5	Electricity System
5.1	common socket	5 hole Universal
5.2	air conditioner socket	16A
5.3	light	single tube fluorescent lamp,without cover,38W
5.4	electric wire	three colors
5.5	double connection plane switch
5.6	distribution board
6	Others
6.1	lift corner piece	standard parts
6.2	Rainspout
6.3	Accessories	self-tapping screw,glue,edge cover,etc
