8-12 Cbm Faw Cement Mixer Truck

8-12 Cbm Faw Cement Mixer Truck
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.

From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appciate our clients' fully trust to us, and remember the responsibility every moment.

There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.

Respectful,Faithful,Studious,Innovative .Our progress never could leave your supporting. Warmly welcome your coming!

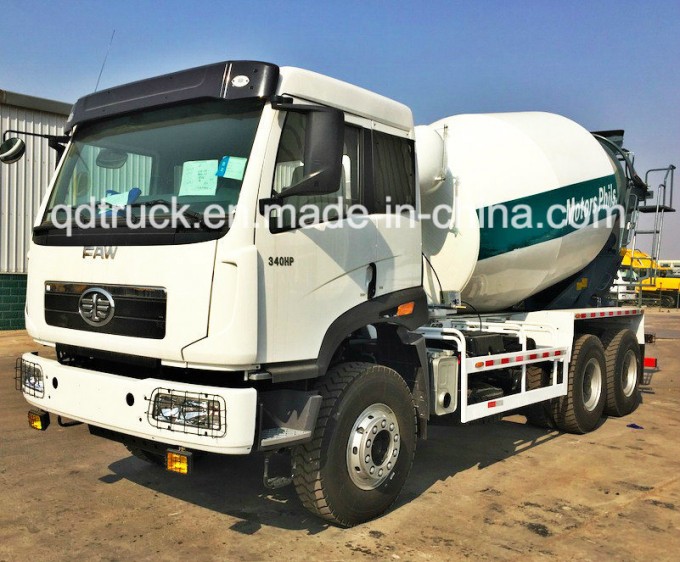

FAW 10 Cubic Cement Mixer Truck
Concrete Mixer Truck
Chassis J5P Cabin with A/C CA1250P2K15T1S2EA80
Emission Rating Euro-3
Wheel formular/drive wheels 6× 4 / rear
Overall Vehicle (mm)
Length 9180
Width 2496
Height 3755
Wheelbase (mm) 3800+1350.
Track F/R (mm) 1493 / 2537
Curb Weight (kg) 13240
Gross Vehicle Weight (kg) 24990
Max. Speed 86

Cement Mixer Truck Special Engine:
Trade mark, model WP10.336N
Transmission Fuller RTD-11509C.
Tire 11.00R20
Drum
Diameter of the drum (mm) Φ 2340.
Available capacity (M3) 10
Material Discharged Remaining Ration (%) ≤ 1
Thickness of Drum(mm) 4.5
Thickness of Blade(mm) 4
Hydraulic system
Reduction gear ZF P7300
Oil pump Eaton 6423-279.
Motor Eaton 6433-042
Water washing system is driven by air pssure
Water Tank Volume (L) 300L.

FAW truckCement Mixer Truck

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company and SINOTRUK. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Main technical parameters
Item		Model
		8m3	9m3	10m3	12m3
Mixing Drum	Geometrical area(m3)	13.94	15.18	17.9	20.5
	Effective Mixing Volume(m3)	9	10	12	14
	Mixing Capacity(m3)	5	5	5	5
	Drum Inner Max Diameter(mm)	2300	2300	2400	2400
	Drum Length(mm)	4750	5039	5474	6069
	Angle of Inclination	13	13	12	10.8
	Mixing speed(r/min)	0-14	0-14	0-14	0-14
	Slump(mm)	40-210	40-210	40-210	40-210
Hydraulic system	Oil pump type/Max working pssure	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER
		42*90	42*90	42*90	41.5*105.5
	Motor type/Max working pssure	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER	REXROTH/EATON/SAUER
		42*80	42*80	42*80	41.5*105.5
	Gear Reducer type/Max working torque/speed ratio	PMP/SAUER/TOP/BONFIGLIOLI	PMP/SAUER/TOP/BONFIGLIOLI	PMP/SAUER/TOP/BONFIGLIOLI	PMP/SAUER/TOP/BONFIGLIOLI
		60000/99.9	60000/102.8	65000/120.3	75000/129.94
	Oil cooler type/Volume	FLJ-9X YLF-201A	FLJ-9X YLF-201A	FLJ-9X YLF-201A	FLJ-9X YLF-201A
		18	18	18	18
Water supply system	Water supply Mode	Compssed Air Mode	Compssed Air Mode	Compssed Air Mode	Compssed Air Mode
	Water Tank Capacity(L)	450	450	450	450
Truck parameters	LxWxH(mm)	9135*2490*3810	9135*2490*3810	9810*2500*3985	9810*2500*3985
	Total Weight(kg)	25000	25000	25000	25000
	Device Weight(kg)	13170	13170	13700	13700
	Axle Load(kg)	7000/18000	7000/18000	7000/18000	7000/18000
	Wheel base(mm)	3800+1350	3800+1350	3800+1350	4000+1400
	Wheel base(Front/Back)(mm)	1939 1850/1850	1939 1850/1850	2036 1850/1850	2036 1850/1850
	Max Running Speed(km/h)	77	77	77	77

alltypes trucks, semitrailers,lowbedsemitrailer,containertransportsemitrailer,sidewallsemitrailer,storehousebarseries,vanseries,carcarriersemitrailer,dumptrailer,tankertrailerseries,concretemixertruckseriesetc.Also,ourbusinesslinerangesfromtheresearch,development,anddesigntothemanufactureandsalesforotherautomobileaccessories,especiallyfortires.OurproductsaremainlyexportedtoPhilippine,Tunisia,Vietnam,Tanzania,Angola,Mongolia,Venezuela,UAE,Kenya,ect

1)Manufacturer,morethan14yrsprofessionalexperience.
2)CCC,SGSandISO9001certificate,one year guaranteetermprovided.
3)Smallordercanbeaccepted.
4)Anycolorandlogowillbeavailable.
5)Productscanbecustom-madeaccordingtoyourdesign,ordiversifiedneeds.
