Detailed Description

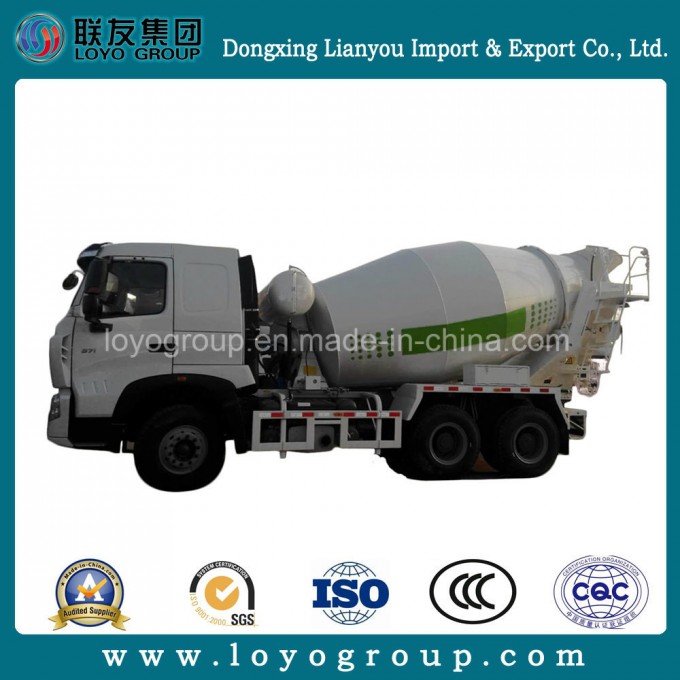

Sinotruk HOWO-A7 6X4 Mixer Truck
| Drive type | 6x4 HOWO A7 |
| Models | ZZ5257GJBN3847N1L |
| Engine | Model | WD615.69/WD615.47/D10.34 |
| HorsepowerHp(kw)/rpm | 336(247), 371(273),375/2200 |
| Type | 6-cylinder in-line with water cooling; 4-stroke direct injection; turbo-charging and inter-cooling; Engine Capacity 9.726L |
| Emission Standard | Euro 3 |
| Transmission | Model | HW19710/HW15710 |
| Type | Manual |
| Clutch | φ430mm diaphragm clutch,Spring plate,diaphragm spring |
| Axle | Front Axle | HF7,HF9 |
| Rear Axle | HC16, ST16, AC16 (ratio:3.93; 4.8; 5.45; 5.73) |
| Axle load (kg) | 7000/18000 |
| Steering | ZF8098 |
| Max.Speed(km/h) | 95 |
| Approach/Departure (°) | 20/13 |
| Tires | 11.00-20,12.00-20,12.00R20(18PR),12.00R20(20PR),12.00R20(22PR) |
| Chassis | Wheel base | 3825+1350 |
| LxWxH (mm) | 9335x2496x3800 |
| Overhang (front/rear) | 1540/2620 mm |
| Kerb Mass(kg) | 13900 kg |
| Total Mass (kg) | 25000 kg |
| Cabin | HOWO A7-P |
| one berth ,With air-condition,radio and MP3-Player |
| Electrical system | 24V,minus earth,2x12V/165ah storage battery,28V/1540Kw generator |
| Feul tank | 300L Aluminum alloy fuel tank |
| Brake | Service Brake | With dual-circuit compssed air brake |
| Parking Brake | Power spring brake acting on rear wheel |
| Auxiliary Brake | Engine exhaust valve brake |
| Drum specifications | Tank capacity | 8/9/10/12 (m³) |
| Gradient of the drum | 13.5/ 11 /10 |
| Water tank capacity:400L; Rest rate: 0.5%;Retational speed of the drum:0-16r/min |
