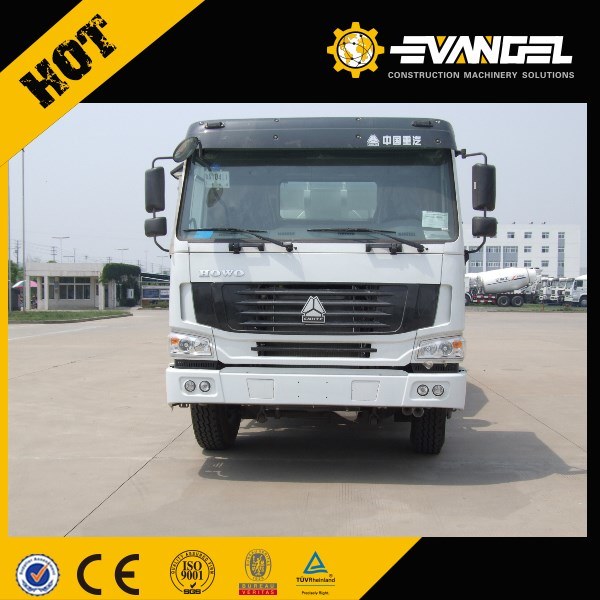

Concrete Mixing Truck Sino HOWO 6*4 (10M3)

Contact
Selina Jiang
Sales Manager


Mobile: +86-159-214-12075


Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109-810
Fax: +86-21-62120109
Web: www.evangelchina.com
Web: www.evcrane.com
Alibaba:http://evangelchina.en.alibaba.com
Made-In-China:http://evangelchina.en.made-in-china.com
www.facebook.com/evangelchina

10CBM Concrete Mixer Truck 6*4

1. Mixing capacity 10m3 (6M3~14M3 is available)

2. Engine Power 336HP

3. Truck Chassis HOWO Brand (You can also choose DFAC, ISUZU, etc. )

4. RHD (Right Hand Drive) is available
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic pheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart pvention system effectively avoids the misoperation, and improve the use security of the machine.

Chassis	Chassis Brand		SINO HOWO
	Chassis Model		ZZ1257N3847C
	Drive Mode		6*4
	Tire		12.00-20
Engine	Model		WD615.95E
	Horsepower (Hp)		336
	Displacement(ml)/Power(kw)		9726/247
	Emission		Euro III
Main Parameter	Overall dimension (mm)	Approx. L*W*H	9350*2500*3990
		wheelbase	3825+1350
		Axles No.	3
	Weight (kg)	Approx. Gross weight	25000
		Capacity	10M 3
		Approx. Kerb weight	12870
	Leaf spring No.		9/12
	Front/Rear Trace(mm)		2022/1830
	Max speed(km/h)		90
	Gear Box		10 speed gearbox
	Front/Rear Axle Load		9T/16T
Mixer Drum	Filling Rate(%)		63%
	Rate of Feeding(M 3/min)		≥ 3
	Rate of Delivery(M 3/min)		≥ 2.0
	The Remaining Rate(M 3/min)		≤ 1.0
	Tube Service Speed(r/min)		0-12
	Tube Dip(° )		13-15
Hydraulic Parameters	Oil Pump		Italy Brand
	Hydraulic Motors
	Decelerator
