Detailed Description
Best used newHB41 41m mini co
ncrete pump mixer truck for sale.
Best used newHB41 41m mini co
ncrete pump mixer truck for sale
Parameter of Co
ncrete Pump HB41:
Category | Item | Unit | | Parameter | |
| Chassis | Model | | | FS1ERV | Actros3341 | FM |
| Manufacturer | | | Hino | Germany BNZ | VLVO |
| Max. speed | | km/h | 85 | 85 | 90 |
| Max. gradeability | | 46.30% | 61.90% | 30% |
| Min. turning diameter | m | 17.8 | 19.8 | 18.4 |
| Brake distance | | m | ≤7 | ≤7 | ≤7 |
| Wheelbase | | mm | 4640+1310 | 4500+1350 | 4900+1370 |
| Tread (front/rear) | mm | 2050/1855 | 2034/1804 | 2019/1834 |
| Approach angle/departure angle | . | 22/10 | 16/10 | 18/10 |
| Min. clearance | mm | 245 | 300 | 270 |
| Tyre specification | | | 295/80R22.5 | 315/80r22.5 | 12.00R20 |
| Engine | Model | | | E13C TL | OM501LA.|||/17 | D13 |
| Output power | | kw/(r/min) | 302/1800 | 300/1800 | 294/1800 |
| Max. torque | | N.m/(r/min) | 1618/1100 | 2000/1080 | 2000/1050 |
| Displacement | | | 12.9 | 11.946 | 12.8 |
| Emission Standard | | Nation III GBIII | Nation III GBIII | Nation III GBIII |
| Other | Dimension (length xwidth xheight) | mm | 11100x2500x3990 | 11060x2500x3990 | 11350x2500x3990 |
| Total vehicle weight | | kg | 30500 | 30600 | 31400 |
| Fuel tank capacity | | 400 | 400 | 400 |
| Fuel consumption per 100km | /100km | 33.3 | 40 | 40 |
| Pumping operation |
|---|
| Category | | ItemITEM | | UnitUNIT | Parameter | |
| Pumping system | Theoretical output(high pssure/low pssure) | | m³/h | 70/140 | |
| Concrete pumping pssure(high pssure/low pssure) | Mpa | 11.8/6.38 | |
| Theoretical pumping times(high pssure/low pssure) | /min | 15/27 | |
| Max. diameter of pumping concrete aggregate | | mm | 40 | |
| Feeding height | | | mm | 1530 | |
| Pumping slump range | | cm | | |
| Placing boom | Reach height | | m | 40.5 | |
| Reach depth | | m | 27.5 | |
| Slewing radius | | m | 36 | |
| Slewing angle | | . | ±270 | |
| 1st boom stretch angle | | . | 90 | |
| 2nd boom stretch angle | | . | 180 | |
| 3rd boom stretch angle | | . | 180 | |
| 4th boom stretch angle | | . | 240 | |
| 5th boom stretch angle | | . | 250 | |
| Outrigger span | Outrigger longitudinal span | | mm | 7800±50 | |
| Front outrigger transverse span | | mm | 8350±50 | |
| Rear outrigger transverse span | | mm | 7200±50 | |
| Other | Dosing type | | | | S valve | |
| Lubricating method | | | | Automatic lubrication | |
| Controlling method | | | | Manual/remote control | |
| Water tank capacity | | | | | 600 | |
| Max. pssure of water pump | | Mpa | 2 |
Sunny Feng/ Sales Manager
Evangel Industrial (Shanghai) Co., Ltd.
Evangel Internatio
nal Machinery Ltd.
(CHINESE LEADING Co
nSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Mobile: +86-18019735352
Tel:+86-21-6277-0028 ext. 812Fax: +86-21-6277-0109 ext. 815
Web:http://www.evangelchina.com

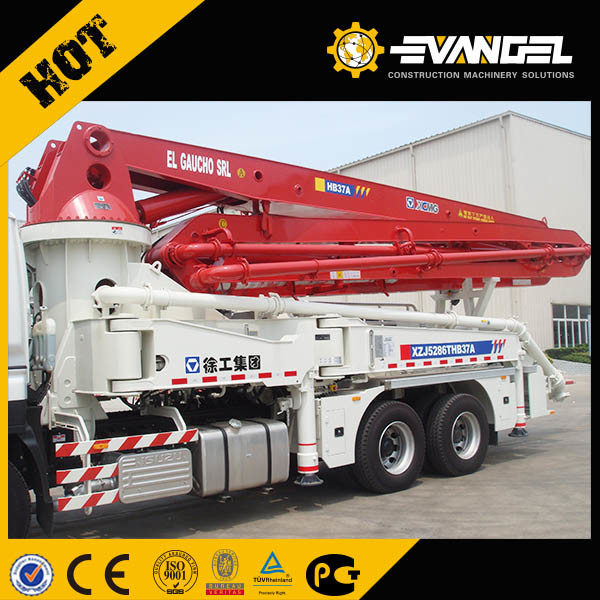

Product Image
