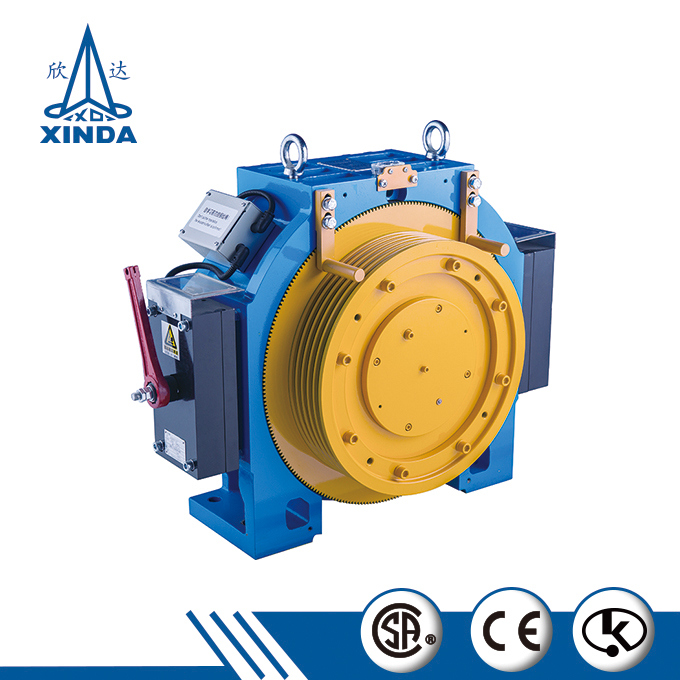

Gearless Traction Machine for Elevators (MINI 5 Series)

OUR ADVANTAGES

1.We have taken the lead in developing permanent magnet synchronous gearless traction machine successfully in china,achieving six items of "the whole nation first".
2.We have20 years' export experienceand are ready to serve your market.
3.More than thirty years in elevator spare parts.
4.Aleaderin Mainland China.
5.We can provide high qualitytechnical support.
6.We guaranteefirst-rate services.

PRODUCT DESCRIPCTION

Product Name	Gearless Traction Machine for Elevators (MINI 5 Series)
Traction ration	2:1
Rated capacity	800,1000kg
Rated elevator speed	0.63,1,1.6,1.75m/s
Max. shaft load	3000kg
Applicable converter	3 phase 400V
Brake voltage	110VDC
Certificate	ISO9001 /CCC /CE
Features	Low-energy, Low noises, Non-pollution, Less maintenance
Payments	T/T, L/C

Don't hesitate to contact us if you have any questions.

PRODUCTS SHOW

Type	Specification	speed(m/s)	Load(kg)	Power(kw)	Rev(r/min)	Frequency(Hz)	Current(A)	Torque (N@m)	Rope	Weight	Lifting height
Mini	5-6.3-800	0.63	800	3.4	60	10	6.8	545	5×Ø10	330	30
Mini	5-10-800	1	800	5.5	95.4	15.9	12	545	5×Ø10	330	40
Mini	5-16-800	1.6	800	8.7	152.4	25.4	19	545	5×Ø10	330	70
Mini	5-17.5-800	1.75	800	9.5	166.8	27.8	20.7	545	5×Ø10	330	70
Mini	5-6.3-1000	0.63	1000	4.3	60	10	9.2	680	5×Ø10	350	30
Mini	5-10-1000	1	1000	6.8	95.4	15.9	14.8	680	5×Ø10	350	40
Mini	5-16-1000	1.6	1000	10.9	152.4	25.4	23.3	680	5×Ø10	350	70
Mini	5-17.5-1000	1.75	1000	11.9	166.8	27.8	26.6	680	5×Ø10	350	70

COMPANY OVERVIEW

With multi-industry and self-supporting import and export rights, China Ningbo Xinda Group Co., Ltd. is one of the largest manufacturers &exporters for elevator key mechanical components in the world. we have 20 years' export experience and are ready to serve your market.Our global annual sales amount reached US$200 million in 2009. We provide worldwide customers with afull line of reliable products:

1. Elevator key components:such as Geared Traction Machine, Gearless Traction Machine, lift motors, Elevator Car, Door Operator, Landing Door, Overspeed Governor,Safety Gear, etc.
2. Complete elevators, escalators, moving walks:such as Passenger Elevators, Freight Elevators, Commercial elevators, Residential Elevator, MRL elevators, Service Elevator, Bed Elevator, Observation Elevator, Indoor or Outdoor Escalators, passenger conveyors etc.
3. Screw air compssors:such as Twin-screw compssor, stationery screw compssors, air-cooled Screw Compssor, water cooled Screw Compssor, oil-flooded compssor, variable frequency screw compssor, portable screw compssor etc.
4. Rotogravure Printing machines:such as combined type rotogravure pss, dry lamination machine, rotogravure printing &coating machine, rotogravure printing &slitting machine etc.
