Detailed Description
Des
criptions of JZC500 Cheap Co
ncrete Mixers:
JZC series mixer is a gravity type of double-co
nic reversing drum co
ncrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary co
nstruction site, roads, bridge projects and pcast plant.
| Model | JZC500 |
| Discharging Volume | 500L |
| Charging Volume | 800L |
| Productivity | 18~20m3/h |
| Drum-rotating speed | 13r/min |
| Max.Aggregate Size | 60/80mm |
| Accuracy of Water Supply | Errors<=2% |
| Mixing Motor | 15kw |
| Water Pump Motor | 0.75kw |
| Tyre Specification | optional |
| Max.Towing Speed | 20km/h |
| Overall Dimension | 5230*2300*5450mm |
| Weight | 3200kg |
| Model | JZC250 | JZC350 | JZC500 |
| Discharging Volume | 250L | 350L | 500L |
| Charging Volume | 320L | 560L | 800L |
| Productivity | 6~8m3/h | 10~14m3/h | 18~20m3/h |
| Drum-rotating speed | 17r/min | 14r/min | 13r/min |
| Max.Aggregate Size | 60/80mm | 60/80mm | 60/80mm |
| Accuracy of Water Supply | Errors<=2% | Errors<=2% | Errors<=2% |
| Mixing Motor | 4kw | 4.5kw | 15kw |
| Water Pump Motor | 0.55kw | 0.55kw | 0.75kw |
| Tyre Specification | 6.50-16 | 6.50-16 | optional |
| Max.Towing Speed | 20km/h | 20km/h | 20km/h |
| Overall Dimension | 2260*1990*2750mm | 2766*2140*3000mm | 5230*2300*5450mm |
| Weight | 1500kg | 1950kg | |

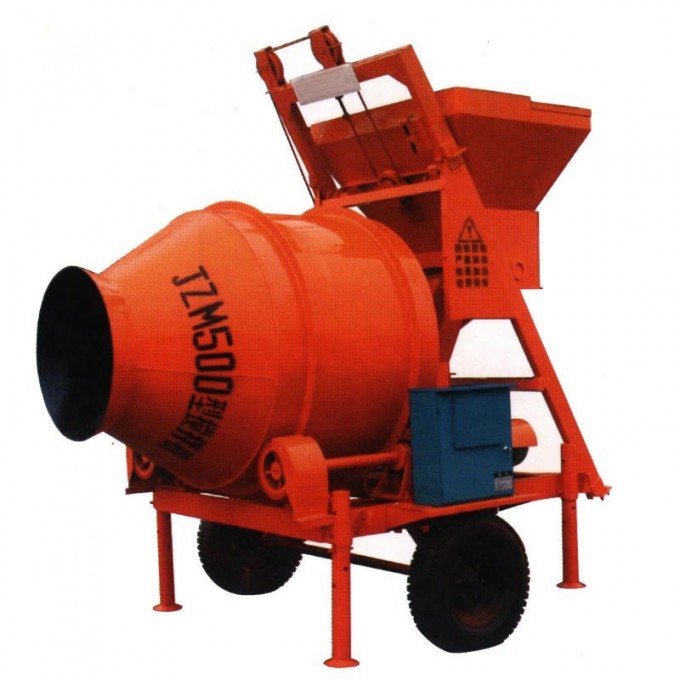

Product Image
