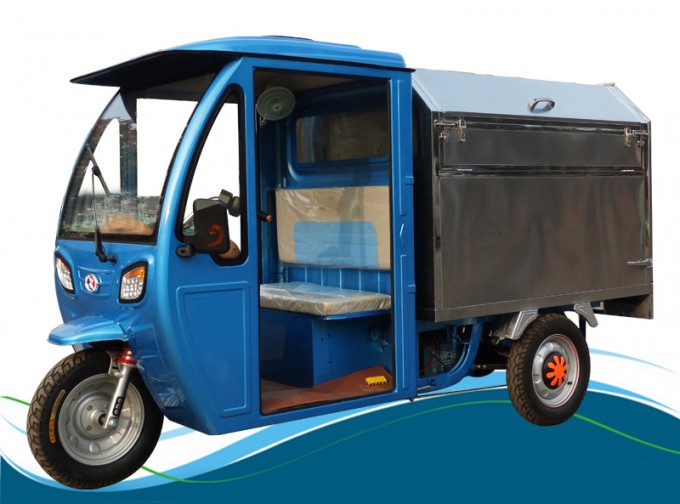

2017 Hot Products 60V1500W Tricycle with Closed Body

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
2017 hot products 60V1500W&#160Tricycle with Closed Body
Foreign trade vehicles are mainly exported to India, Bangladesh and other southeast Asian market for passengers directive
1. Rigid polyurethane microcellular foaming process, good thermal insulation, energy-saving and durable
2. Use anti ultraviolet material, prolong the service life
3. Use pure electric drive design, zero emissions, secondary pollution will not be caused to food
4. Low operating costs, low maintenance costs
5. Rear opening design, effectively locking air conditioning, and equipped with opening accessories
6. Two kinds of electronic temperature control and refrigeration and freexing +8ºC-2ºC refrigerator -12ºC--18ºC freezer
7. Built-in LED lights, more convenient
8. Stainless steel + p coated steel plate liner, durable and easy to clean

Luxury four passengers vehicle No. 4 - configuration instructions

Configuration parameter of sanitation truck No. 4
1	Motor	60V1500W Fengchi shift triangular five hole wind and water-proof wire phase line of 1000 700/10 square high power
2	Rear axle	Integral rear axle
3	Controller	60V large 18 pipe 1500W waterproof, underpssure point 52 + 1
4	Vehicle size	2850mm*1000mm*1650mm(length * width * height)
5	Carriage size	1500mm*1000mm*1050mm (length * width * height)
6	Back door size	1000mm*1050mm (width * height) is opened from bottom to top
7	Side door size	1500mm*550mm (length * width) is opened from bottom to top
8	frame	GB steel structure welding (thickness of main beam is not less than 2.0mm)
9	Steel wheel	4.00-12
10	Tire	16-4.0
11	Front damping	Front fork damping - φ 37 outer spring damping
12	Rear suspension	5 leaf springs, flip-up φ 22, hole 6
13	Horn	48V60V voice self checking Sulida
14	Instrument console	920 48V/60V general purpose instrument
15	Rolling handle	Reverse shift, three speed
16	Radio	12V
17	Radio horn	Yes
18	Wiper motor	12V30W
19	Wiper blade	Wiper, Wiper arm
20	Hopper	Stainless steel
21	Hydraulic pump:	Hydraulic station -1 ton 2 class 460mm (including oil piping, switch)
22	Alarm lamp	Round alarming lights - Sanitation truck No. 4 12V, with switch
23	Process	Pickling, phosphating, electrophoresis, spray painting
24	Shift	It is optional according to actual demand
25	Battery	Matching according to actual endurance requirements is avaiable
26	Vehicle weight	about 300kg

FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
