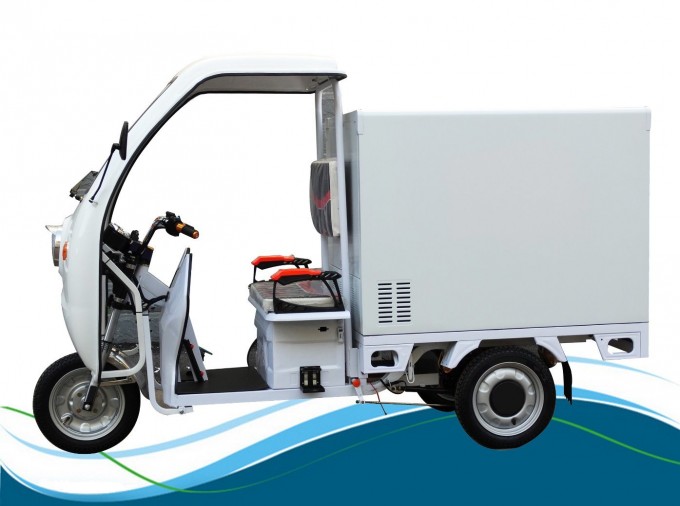

Hot 24V/45ah Three Wheel Electro Tricycle

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
Hot 24V/45ah Three Wheel Electro Tricycle
Foreign trade vehicles are mainly exported to India, Bangladesh and other southeast Asian market for passengers directive
1. Rigid polyurethane microcellular foaming process, good thermal insulation, energy-saving and durable
2. Use anti ultraviolet material, prolong the service life
3. Use pure electric drive design, zero emissions, secondary pollution will not be caused to food
4. Low operating costs, low maintenance costs
5. Rear opening design, effectively locking air conditioning, and equipped with opening accessories
6. Two kinds of electronic temperature control and refrigeration and freexing +8ºC-2ºC refrigerator -12ºC--18ºC freezer
7. Built-in LED lights, more convenient
8. Stainless steel + p coated steel plate liner, durable and easy to clean

Luxury four passengers vehicle No. 4 - configuration instructions

1	Motor	800W brushless differential motor
2	Controller	18 pipe controller
3	Refrigerator / freezer temperature range	+8ºC- 2ºC refrigerator/-12ºC- -18ºC freezer
4	Refrigerator / freezer battery	24V/45AH, lead-acid batteries
5	Refrigerator / freezer running current	16A
6	DC supply voltage	DC 24V
7	Refrigerator / freezer door opening mode	Back opening door type
8	Refrigerator / freezer weight	85kg/90kg
9	Refrigerator / freezer control system	Electronic temperature control
10	Refrigerant	R134a/240g
11	Vehicle size	2720mm-860mm-1730mm (length, width, height)
12	Outside dimension of carriage	1300mm-850mm-950mmm(length * width * height)
13	Inside dimension of carriage	1000 mm-710mm-810mm (length, width, height)
14	Carriage volume	620L
15	Thickness of foaming layer	70mm
16	Tire	Front wheel 3.00-12, rear wheel 3.00-12
17	Steel ring	Front wheel 3.00-12, rear wheel 3.00-12
18	Rear axle	Integral differential rear axle
19	Brake	Model 160 drum brake
20	Vibration damping steel sheet	5 layer steel bridge, soft connection
21	Line	High temperature resistant line (120 degree high temperature, low temperature -20 degree)
22	frame	GB steel structure welding
23	Vehicle weight	210kg
24	Load	>=300kg
25	Endurance	50-80km (reasonable configuration of batteries according to actual endurance requirements is avaiable)
26	Voltage / current	48v/50A
27	Process	Carriage frame electrophoresis, baking finish
28	Body design	Body color brand logo is produced according to the customer's requirements
29	Intelligent system	Voice self-checking, voice reversing, undervoltage protection

FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
